Product Overview
The CG201P Media Converter with PoE is a high-performance fiber optic transceiver designed to seamlessly connect fiber optic and Ethernet networks. This device features 1 1.25Gbps SC fiber port and 2 10/100/1000Mbps Ethernet ports, supporting the IEEE 802.3 af/at Power over Ethernet (PoE) standards. Each Ethernet port provides a maximum power output of 25.4W, ensuring efficient power delivery to PoE-enabled devices while protecting non-PoE devices from damage.
Key Features
- Two 10/100/1000Base-TX Ethernet ports and one 1000Base-X SC fiber optic port for versatile connectivity options.
- Fully compliant with IEEE 802.3 af/at PoE standards, supplying up to 25.4W per RJ45 Ethernet port.
- All Ethernet ports support 10/100/1000Mbps speed auto-negotiation, optimizing network performance.
- Capable of half/full duplex auto-negotiation and automatic MDI/MDI-X crossover, facilitating straightforward installation and setup.
- Features wire-speed forwarding across Ethernet ports, ensuring smooth and efficient data transmission.
- Built with low-power consumption chips that guarantee stable performance and low maintenance needs.
- Plug-and-play design enables quick installation without any configuration required, perfect for immediate deployment.
- Constructed with a robust metal housing for excellent heat dissipation, ensuring long-term reliable operation.
Ideal Applications

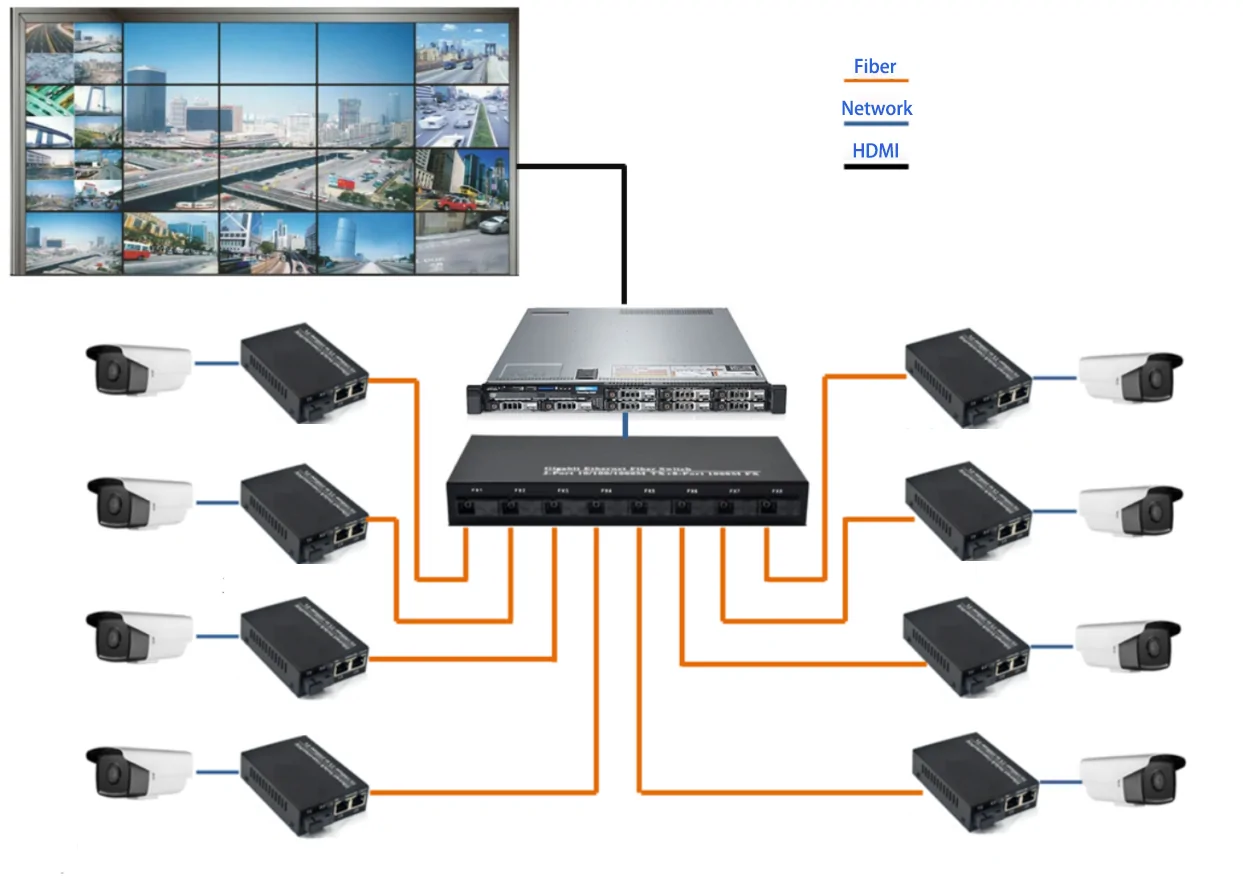

The CG201P Media Converter with PoE is an excellent choice for video surveillance networking and is suitable for various commercial environments, including hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3af/at Power Over Ethernet IEEE802.3x Flow control, |
| Interface information | Single mode SC optical port: 1 1000Base-X optical ports(SC/FC/SFP optional) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 ethernet port: 2 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps auto-negotiation | |
| 10Base-T: ≤100m (CAT5e or above) | |
| 100Base-TX: ≤100m (CAT5e or above) | |
| 1000Base-TX: ≤100m (CAT5e or above) | |
| Mechanical Properties | Shell material: metal shell |

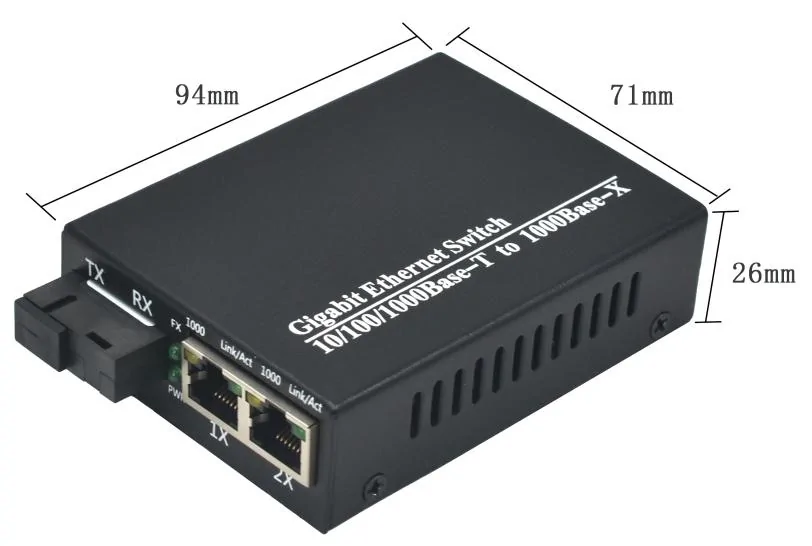

| Appearance size (length * depth * height): 94mm×71mm×26mm | |
| Installation method: Desktop, Rack-mount | |
| Cooling method: natural cooling, no fan | |
| Weight: < 0.18Kg | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 6.0Gbps |
| Packet forwarding rate (entire device): 4.464 Mpps. | |
| Switching method: Store-and-forward. | |
| MAC address table: 2K | |
| Packet buffer: 1m. | |
| Jumbo frame: 9K. | |
| Power supply | Input voltage: DC 44V-52V |
| Power consumption: < 3 W | |
| PoE pin | 802.3AF/AT(1/2+，3/6-) |
| Indicators | Ethernet Port LEDs: POE Indicator: YellowLINK/ACT Indicator: Green |
| Optical Port LED:FX Indicator: Green | |
| Power LED (PWR): Green |
