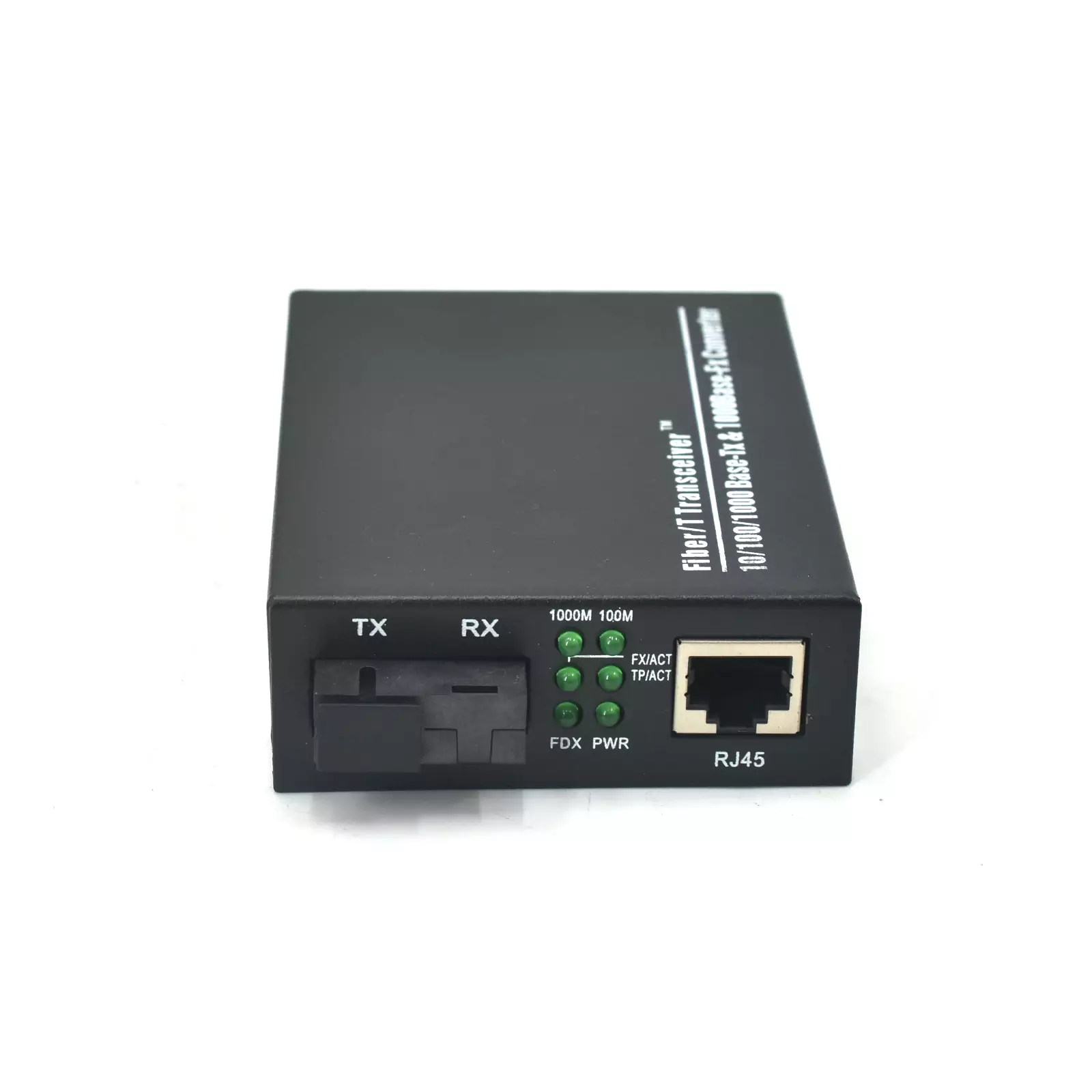

Product Overview

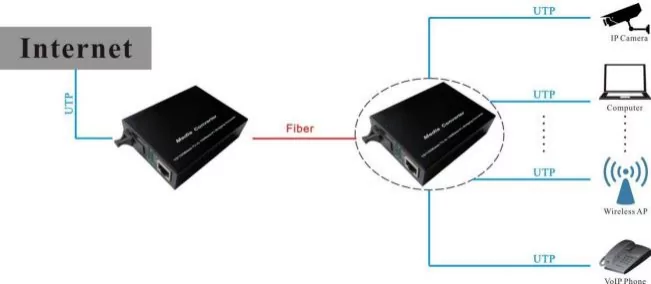

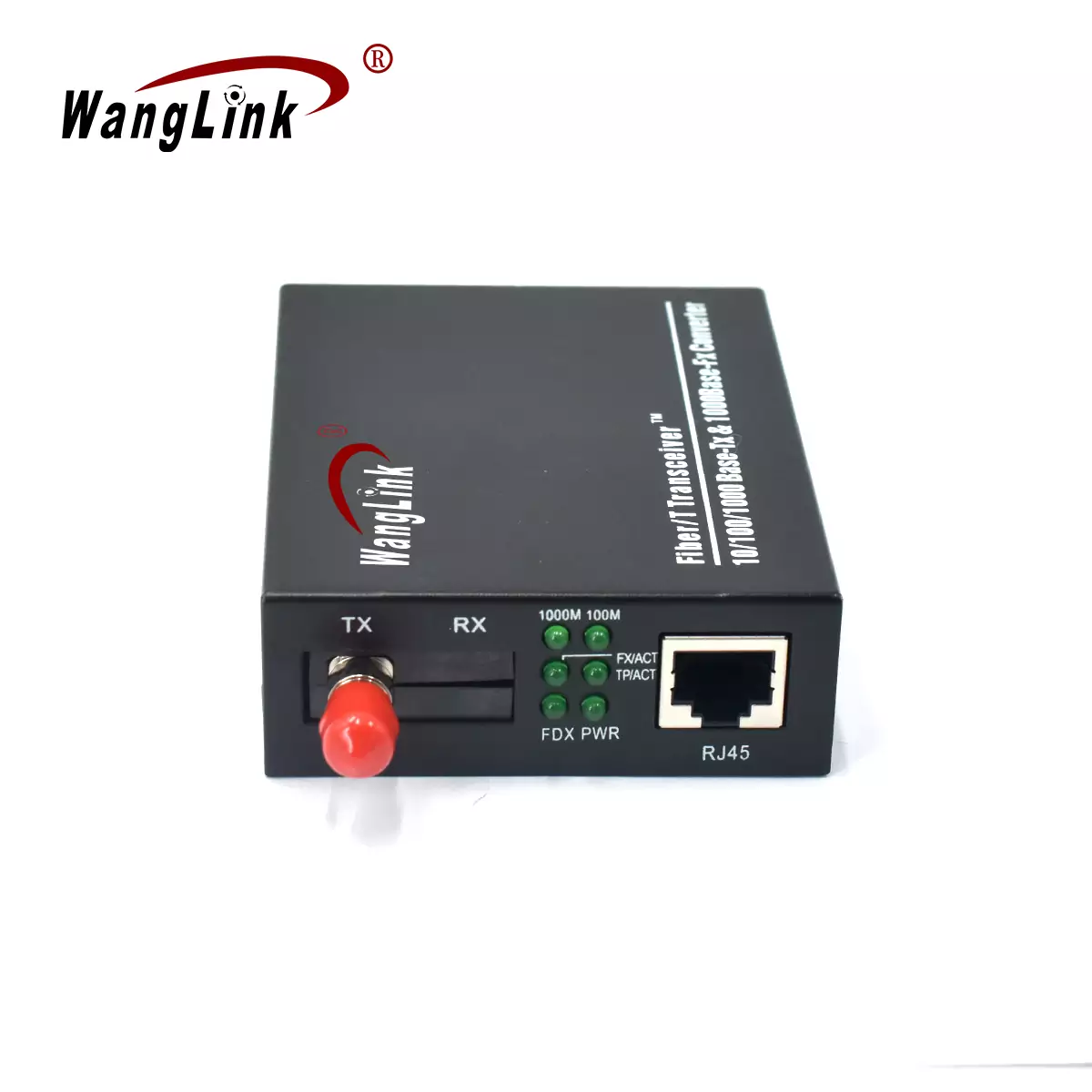

The CG101 is a high-performance 10/100/1000Mbps adaptive Gigabit Ethernet Fiber Switch designed to enhance network connectivity. Featuring one 10/100/1000Mbps Ethernet port and one 1.25Gbps fiber port, this media converter seamlessly extends transmission distances from 100m to 120km using copper cables. With its robust isolation protection, excellent data security, and stable performance, the CG101 is ideal for both enterprise and home networking needs.
Key Features
- Supports switching between 10/100/1000Base-T and 1000Base-SX/LX
- 11.25Gbps full duplex fiber port and 110/100/1000M adaptive Ethernet port
- Supports MDI/MDI-X adaptive and full/half duplex operation

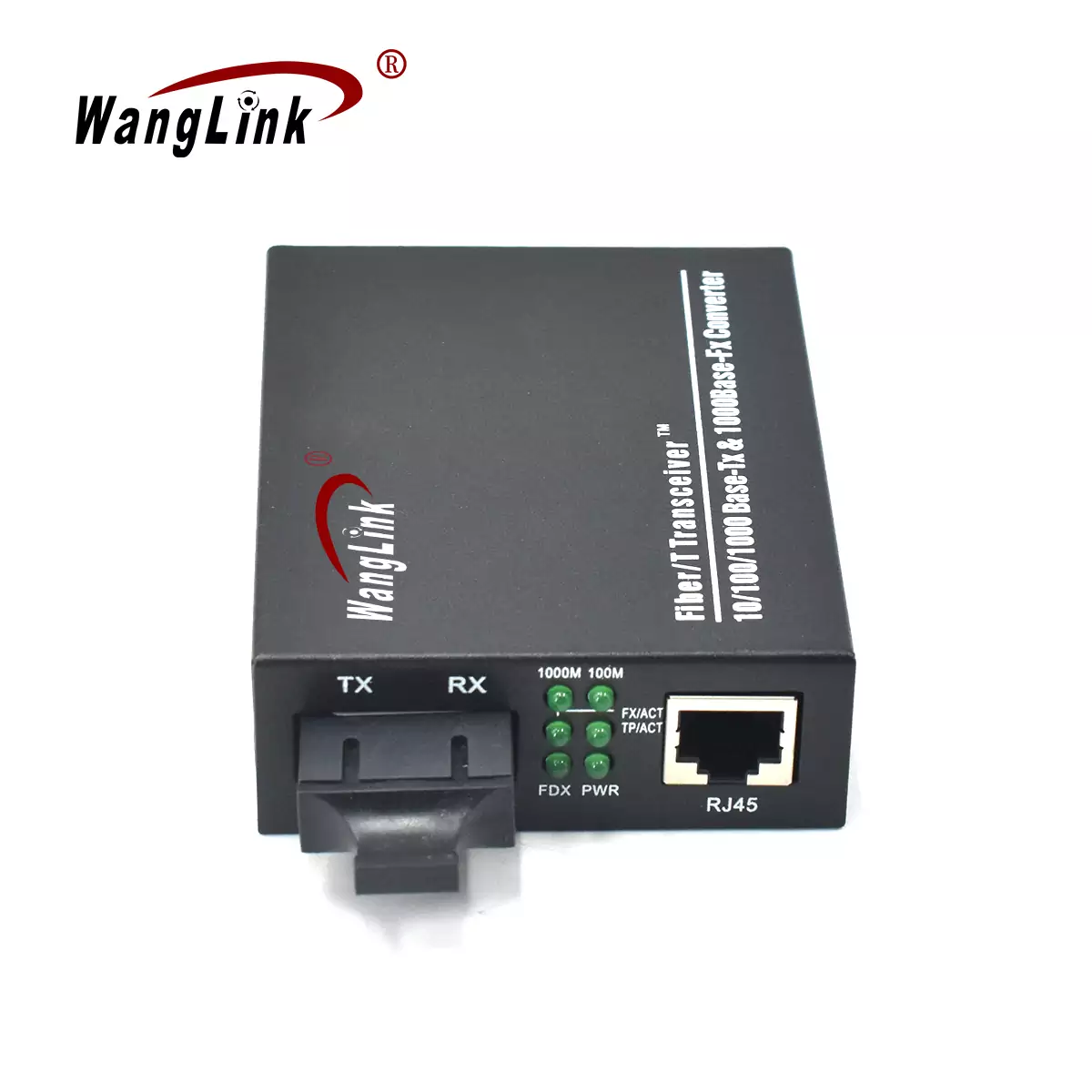

- Complete LED indicator lights for each port
- Complies with IEEE 802.1d Spanning Tree protocol
- High-performance QoS function available on each port

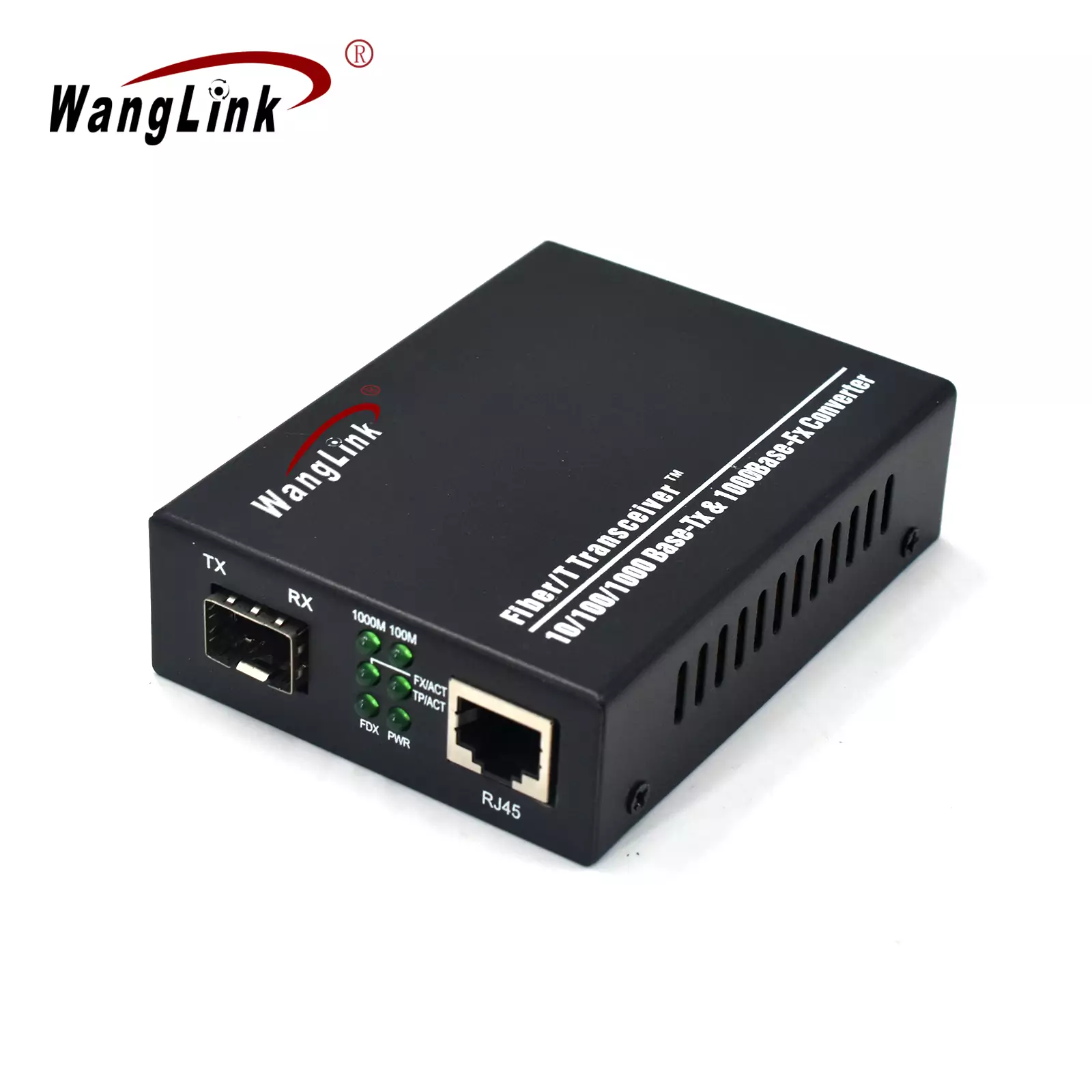

- Optional 1*9 fixed fiber module or SFP slot
- Supports Jumbo Frames up to 9K bytes
- Low latency with built-in data isolation function
- Plug-and-play operation with no configuration required
- Compact design with low power consumption and built-in heat sink for efficient long-term operation
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-TIEEE802.3u 100Base-TX/FXIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-SX/LXIEEE802.3x Flow control |
| Ethernet port Characteristic | Connector Type | RJ45 |
| Transmission rate | 10/100/1000M auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP | |
| Fiber Port | Connector Type | SC/FC/ST/SFP slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | 550m~100km | |
| Exchange performance | Forward method | Store-and-forward |
| MAC address table | 2K | |
| Buffer Space | 1mbit | |
| Maximum packet length | 9K | |
| Time Delay | ＜20μs | |
| Bandwidth | 4G | |
| Power parameters | Power type: | external power supply |
| Input voltage | AC100~240V, 50Hz | |
| Power consumption | Standby: ≤2W; whole: ≤65W | |

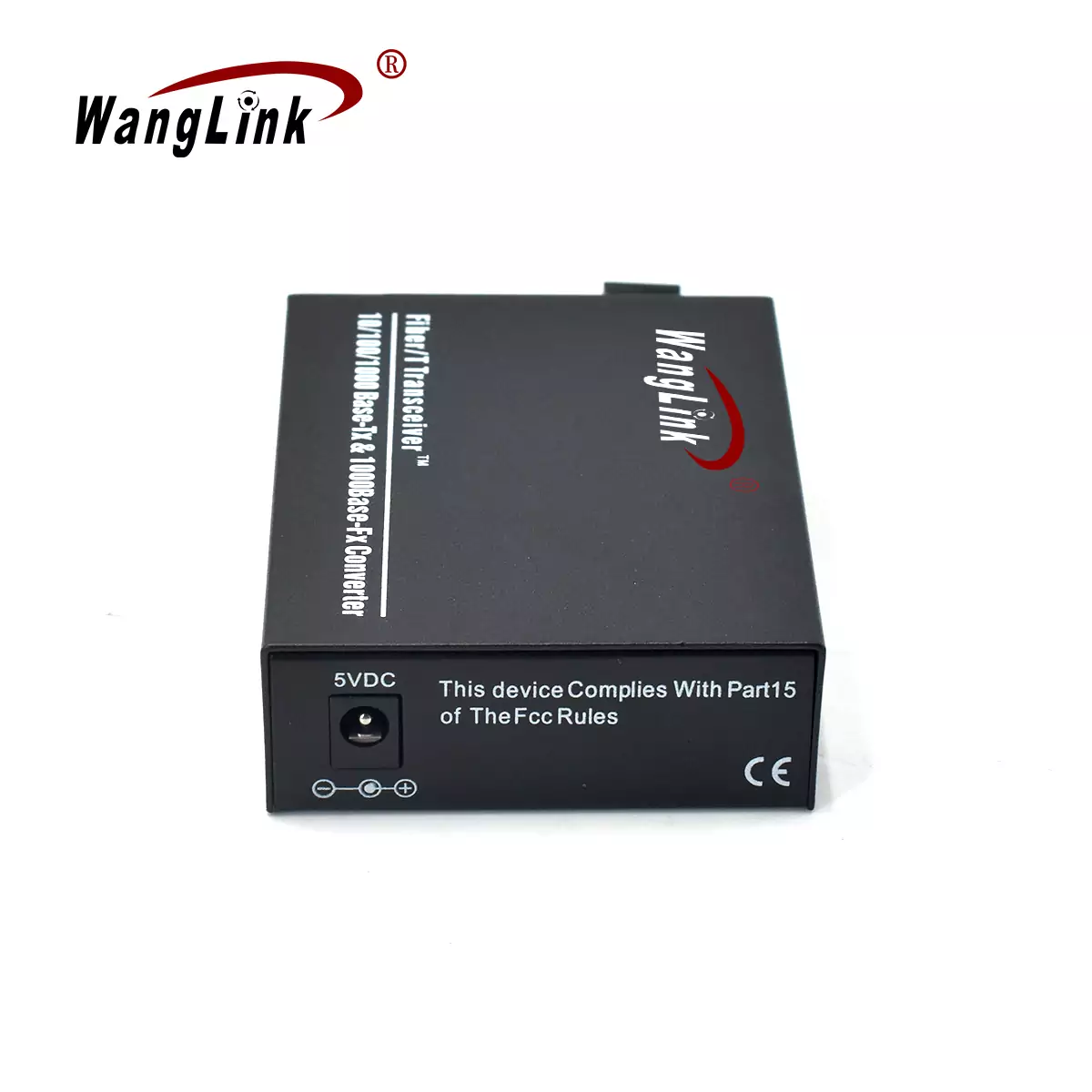

| Connector | DC Socke | |
| Working Voltage: | 5V | |
| Power Consumption | 0.75W~3W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

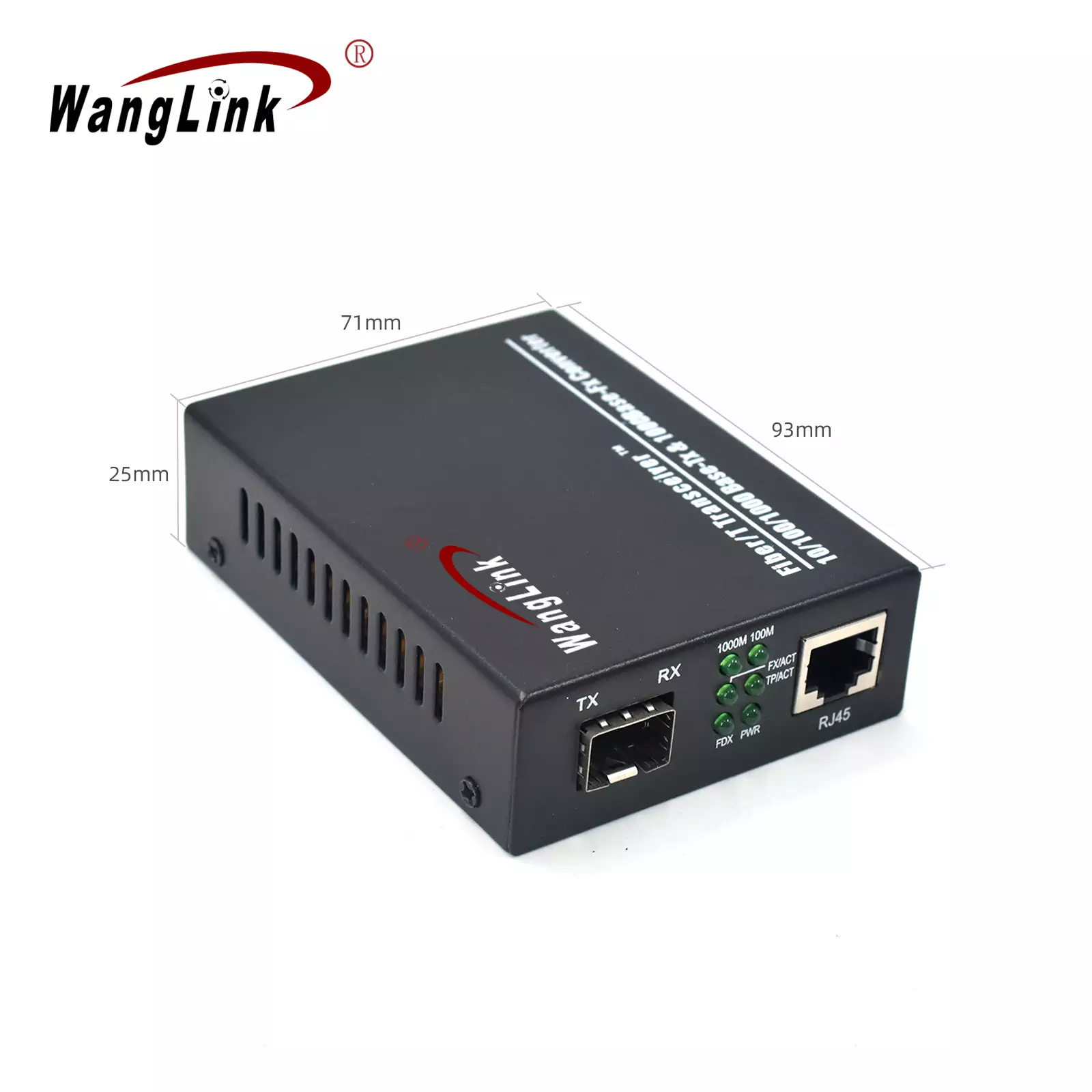

| Physical properties | Size | 94×70×26mm(external),140×110×29mm(internal) |
| Weight | 0.35kg |
