Product Overview
The CF801 is a 10/100 fiber media converter featuring one 155MM SC optical port and eight 10/100Mbps network ports. This Ethernet fiber switch enables seamless data communication between 100Base-T twisted pair cables and 100Base-SX/LX optical fibers, extending the maximum transmission distance from 100 meters with twisted pair to an impressive 120 kilometers with optical fiber. The installation of this fiber optic switch is straightforward and convenient, designed for plug-and-play operation without requiring any configuration. All optical and electrical interfaces comply with international standards, ensuring compatibility. The CF801 offers isolation protection, maintains robust data confidentiality, operates stably, and is easy to maintain, making it suitable for various commercial and industrial environments.
Key Features

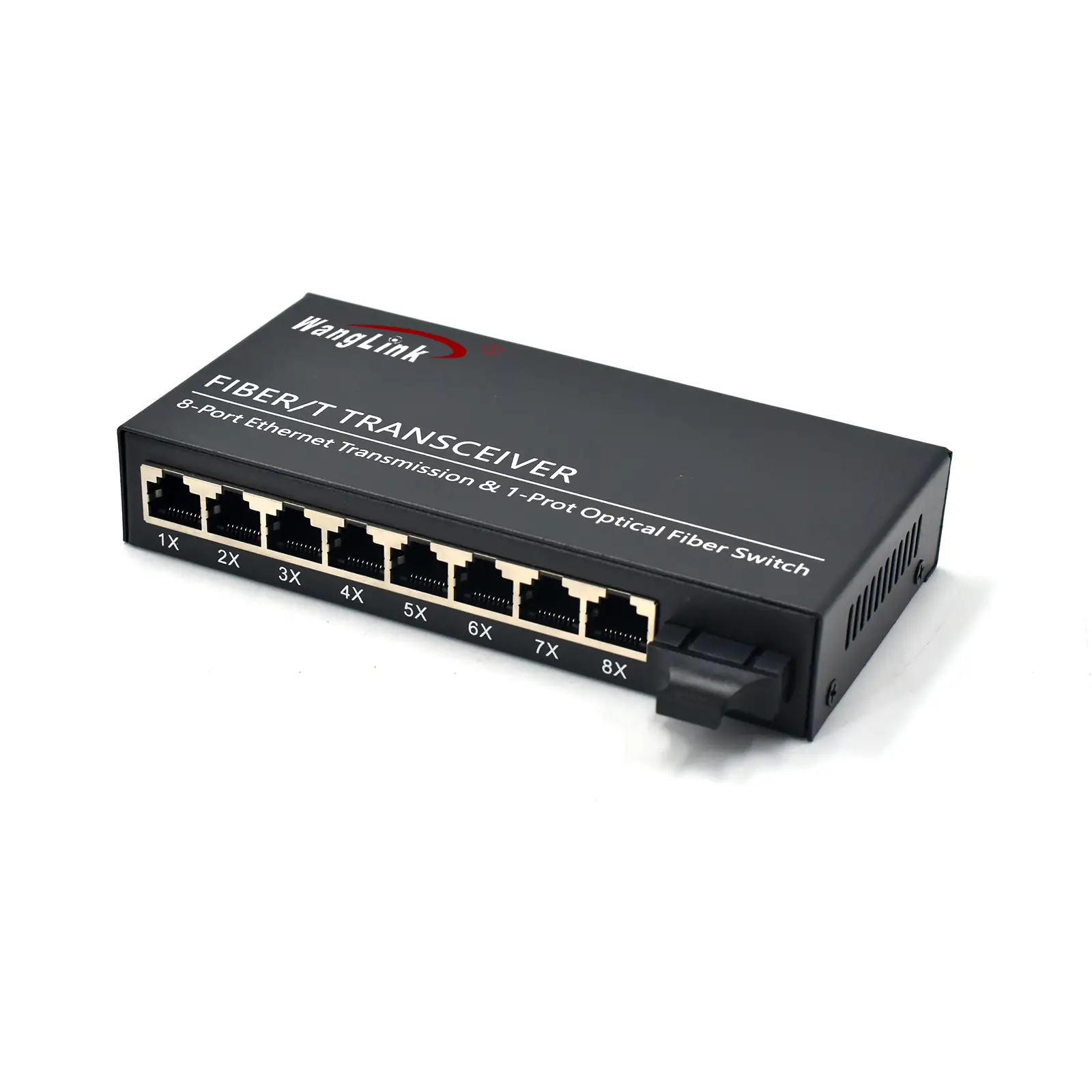

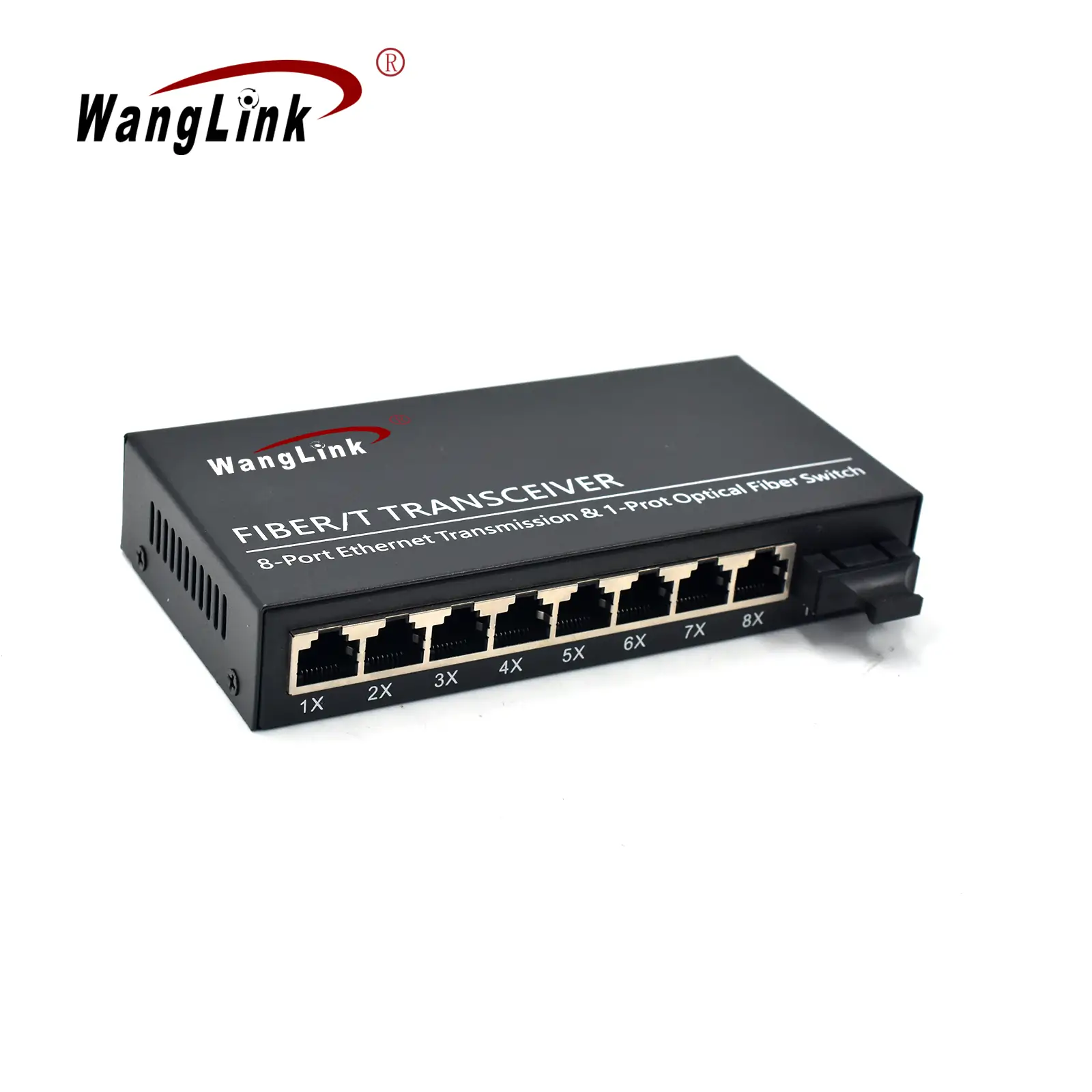

- Equipped with eight 10/100Base-TX RJ45 ports and one 100Base-X optical port.
- Supports transmission of ultra-large data packets up to 2K.
- Features a one-click switch to VLAN mode for enhanced network management.
- All Ethernet ports support 10/100Mbps rate adaptation for flexible connectivity.
- Provides half/full duplex auto-negotiation and automatic MDI/MDI-X functionality for seamless integration.
- Supports line-speed forwarding across all ports, ensuring smoother data transmission.
- Designed for plug-and-play operation, making it easy to use without configuration.
- Constructed with a metal shell for excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet IEEE 802.1p tagged frames IEEE802.3x Flow control |
| Interface information | Single-mode SC optical port: 1 100Base-X optical port (SC/FC/SFP optional) |
| Transmission rate: 155M | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 8 10/100M Base-TX network ports (standard RJ45) | |
| 10/100Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

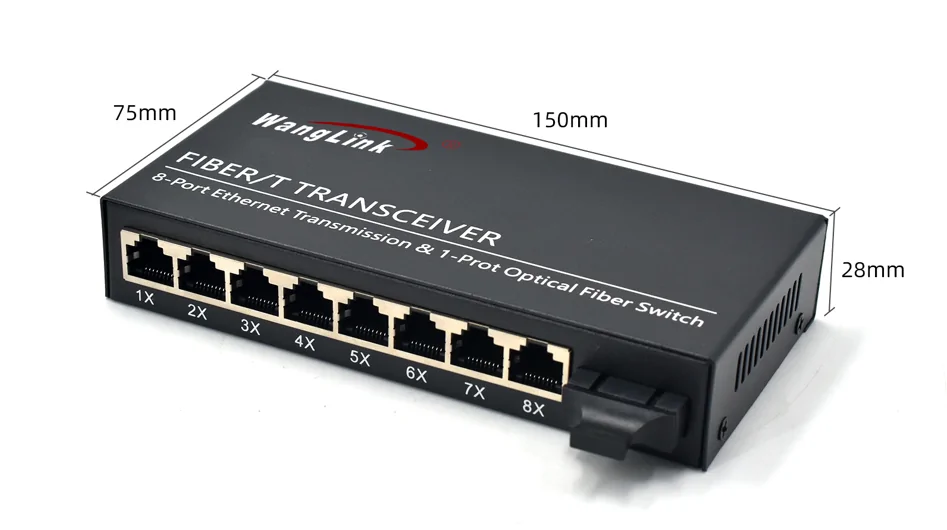

| Appearance dimensions (length*depth*height): 15.2cm×7.5cm×2.8cm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.3KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.8Gbps |
| Packet forwarding rate (whole machine) : 1.341 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Pocket buffer : 768Kbit | |
| Jumbo frame: 2048b | |
| Power supply | Input voltage: DC 5V-12V |
| Power consumption: < 3 W | |

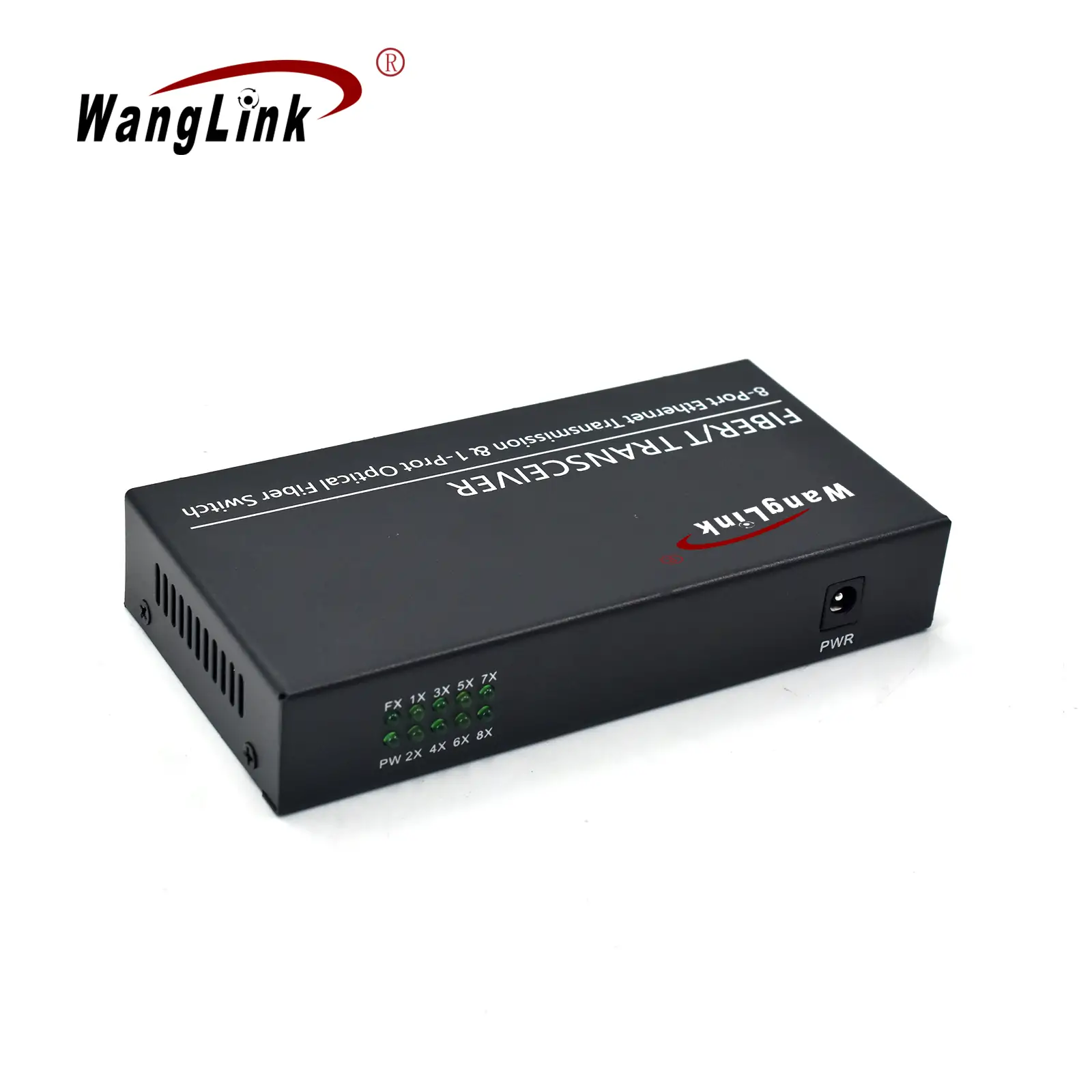

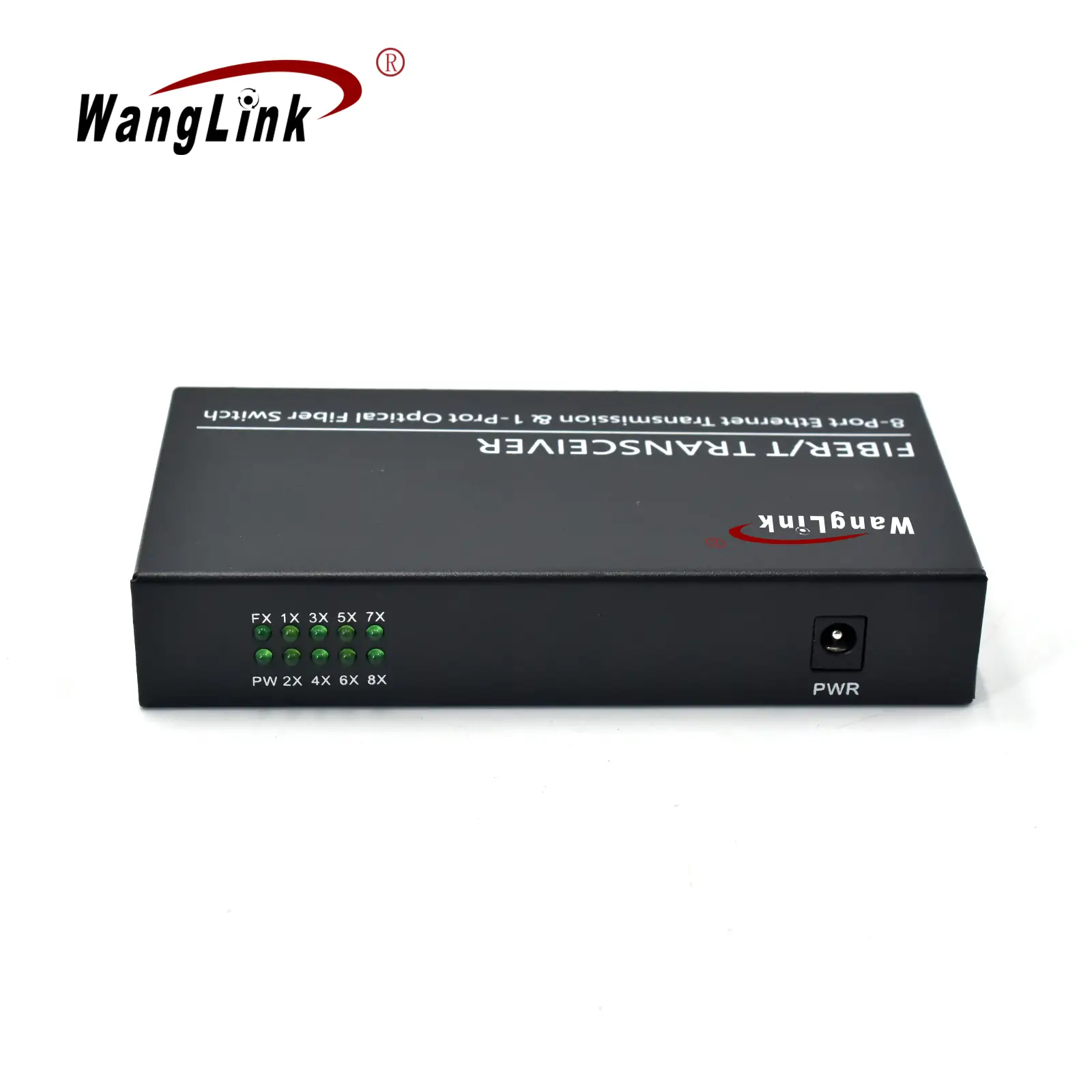

| indicator light | Port light (fluctuation switch control):Link/ACT indicator: Green |
| Fiber port indicator:FX/ Act: Green | |
| Power supply: Green |
