Product Overview

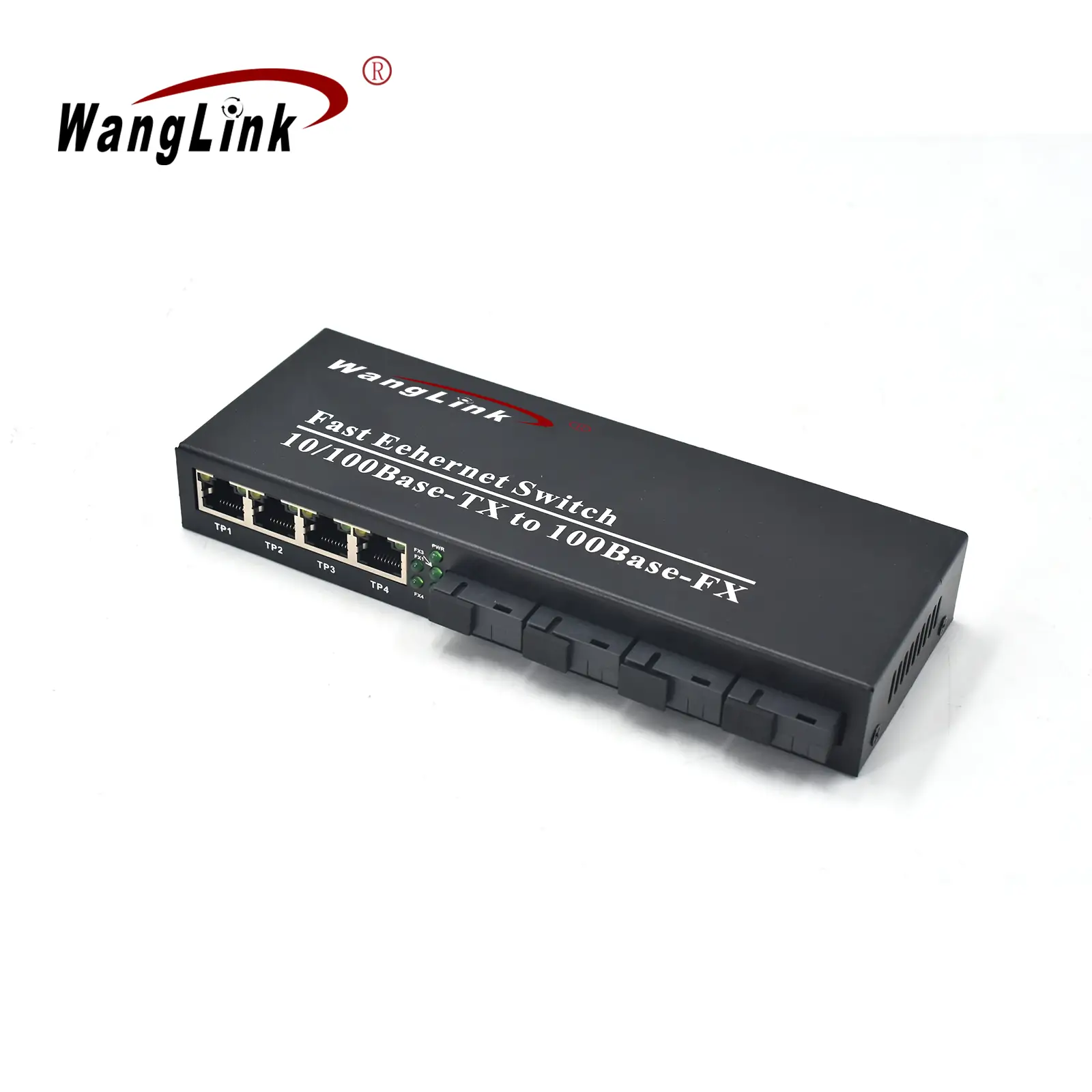

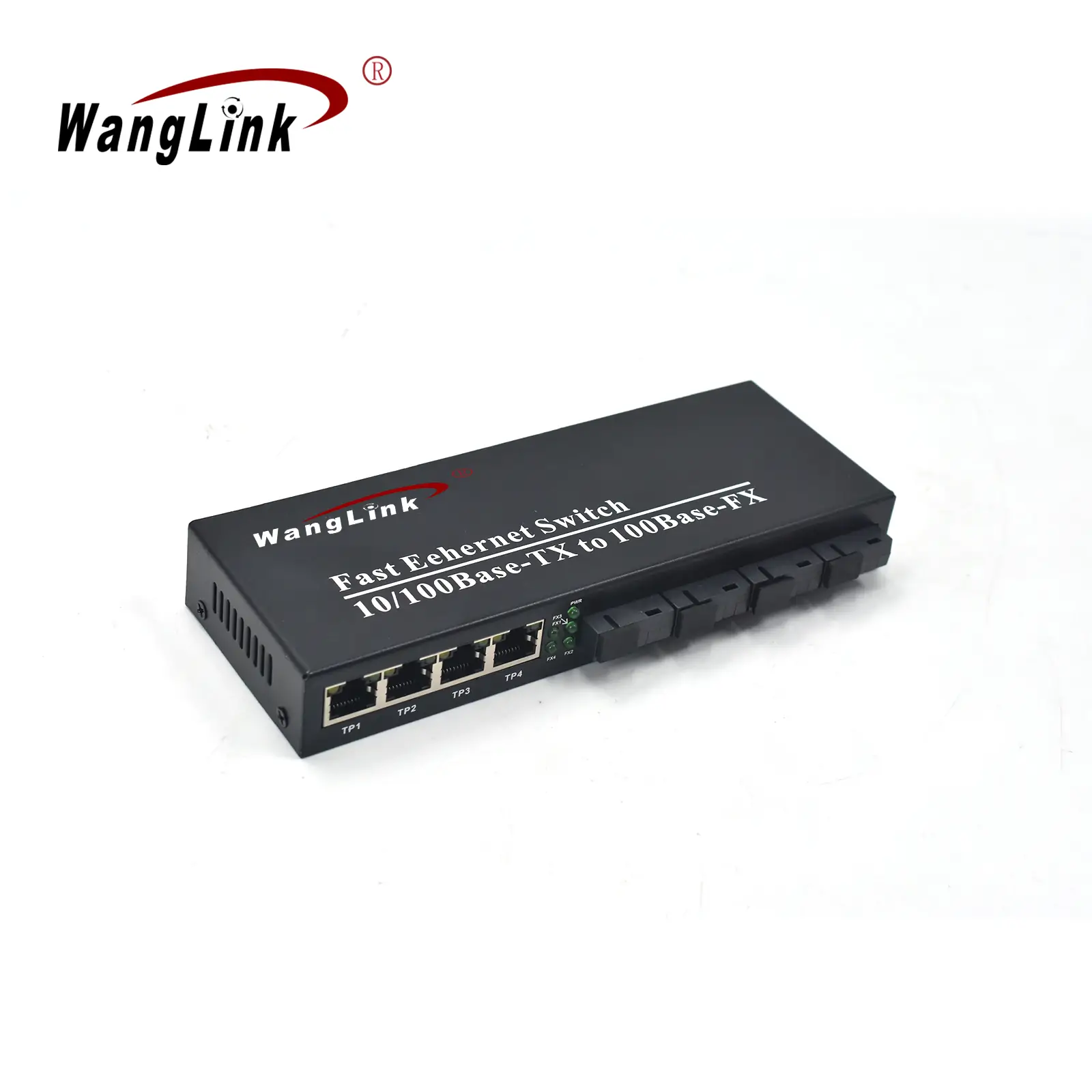

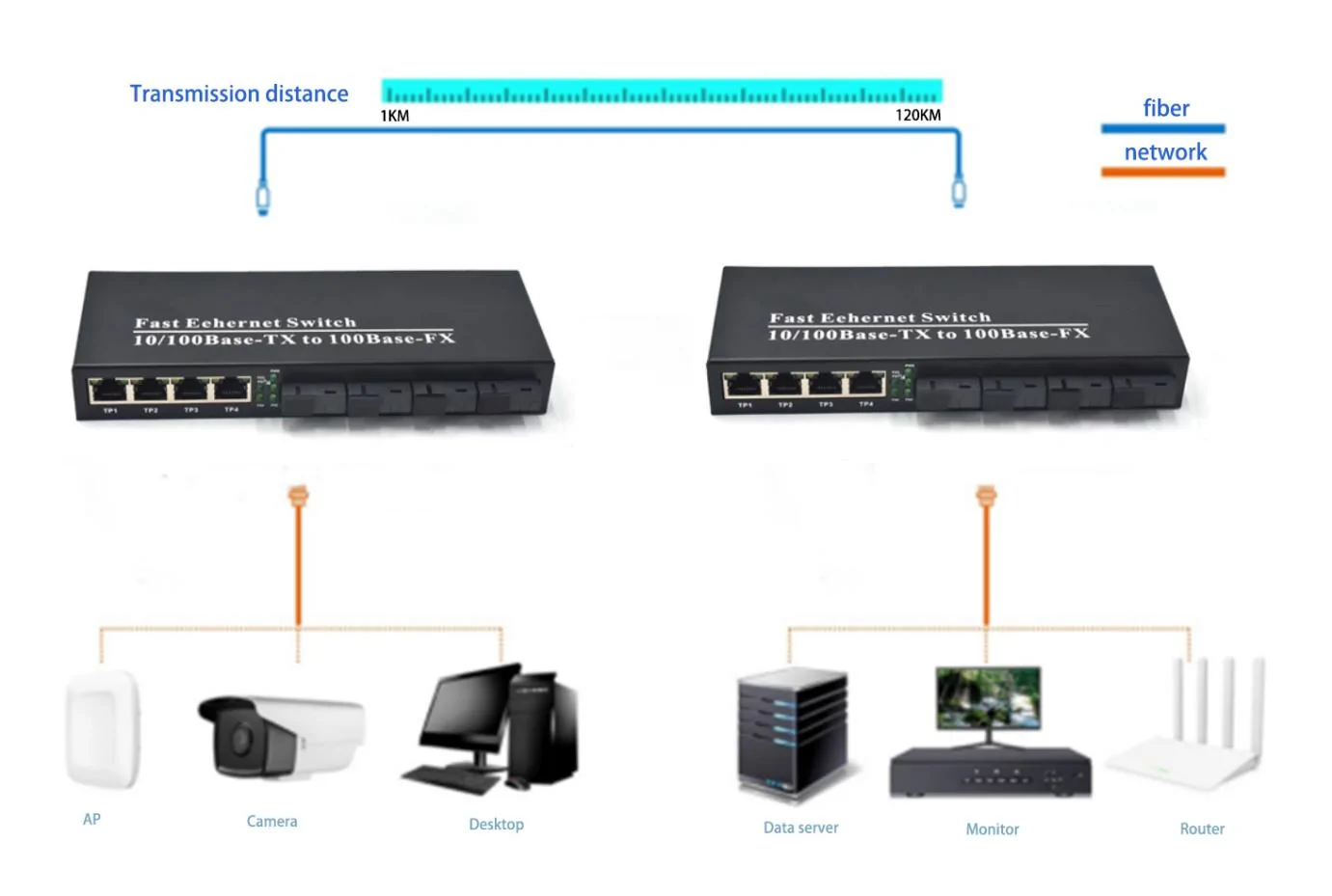

The CF404 is a media converter for fiber to Ethernet applications, designed to enable seamless data transfer between 100Base-T twisted pair cables and 100Base-SX/LX optical fibers. This Ethernet Fiber Switch features four 155MM SC optical ports and four 10/100Mbps Ethernet ports, allowing it to extend the network transmission distance from the 100 meters limit of twisted pair cables to an impressive 120 kilometers over optical fibers. The installation of this fiber optic switch is simple and convenient, featuring a plug-and-play design that requires no configuration. All optical and electrical interfaces comply with international standards, ensuring compatibility. The CF404 provides isolation protection, ensures data confidentiality, operates stably, and is easy to maintain, making it suitable for various commercial and industrial environments.
Key Features
- Port Configuration: Includes four 10/100Base-TX Ethernet ports and four 100Base-X optical ports.
- Jumbo Frame Support: Capable of handling 2K jumbo frame transmission for efficient high-capacity data transfer.
- VLAN Support: Supports one-click switching to VLAN mode for enhanced network isolation.
- Auto-Negotiation: All Ethernet ports support 10/100Mbps auto-negotiation for flexible connectivity.
- Duplex Compatibility: Supports both half and full duplex auto-negotiation across all ports to optimize data flow.
- Automatic Crossover: Equipped with automatic MDI/MDI-X crossover for easy installation and system integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding, ensuring smoother and more efficient data transmission.
- User-Friendly Design: Plug-and-play functionality simplifies operation, requiring no configuration.
- Durable Construction: Built with a metal casing for excellent heat dissipation, ensuring long-term stable performance.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3z 100Base-SX/LX standards IEEE 802.1p tagged frames IEEE802.3x Flow control, |
| Interface information | Single-mode SC optical port: 4 100Base-X optical port (SC/FC/SFP optional) |
| Transmission rate: 155M | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 4 10/100M Base-TX network ports (standard RJ45) | |
| 10/100Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

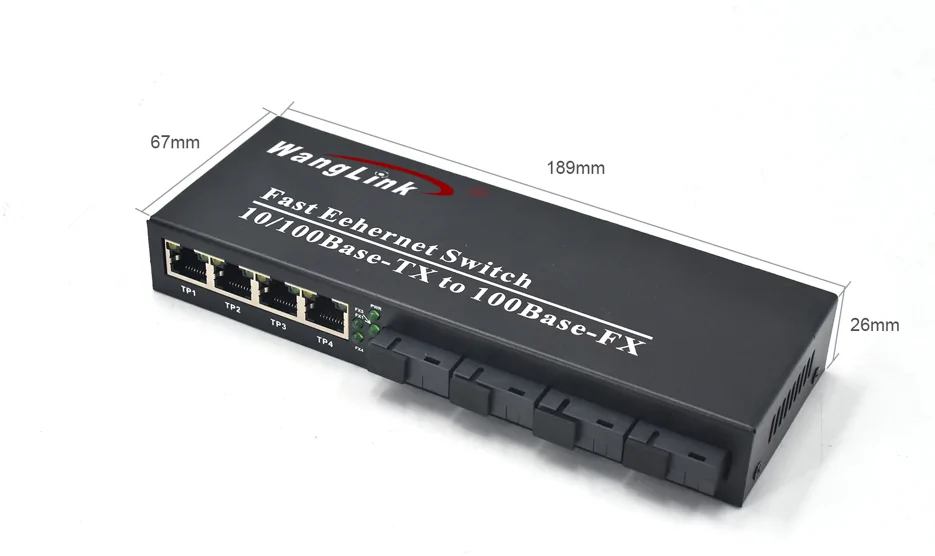

| Appearance dimensions (length*depth*height): 189mm×67mm×26mm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.33KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.6Gbps |
| Packet forwarding rate (whole machine) : 1.1904 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Packet buffer : 768Kbit | |
| Jumbo frame: 2048b | |

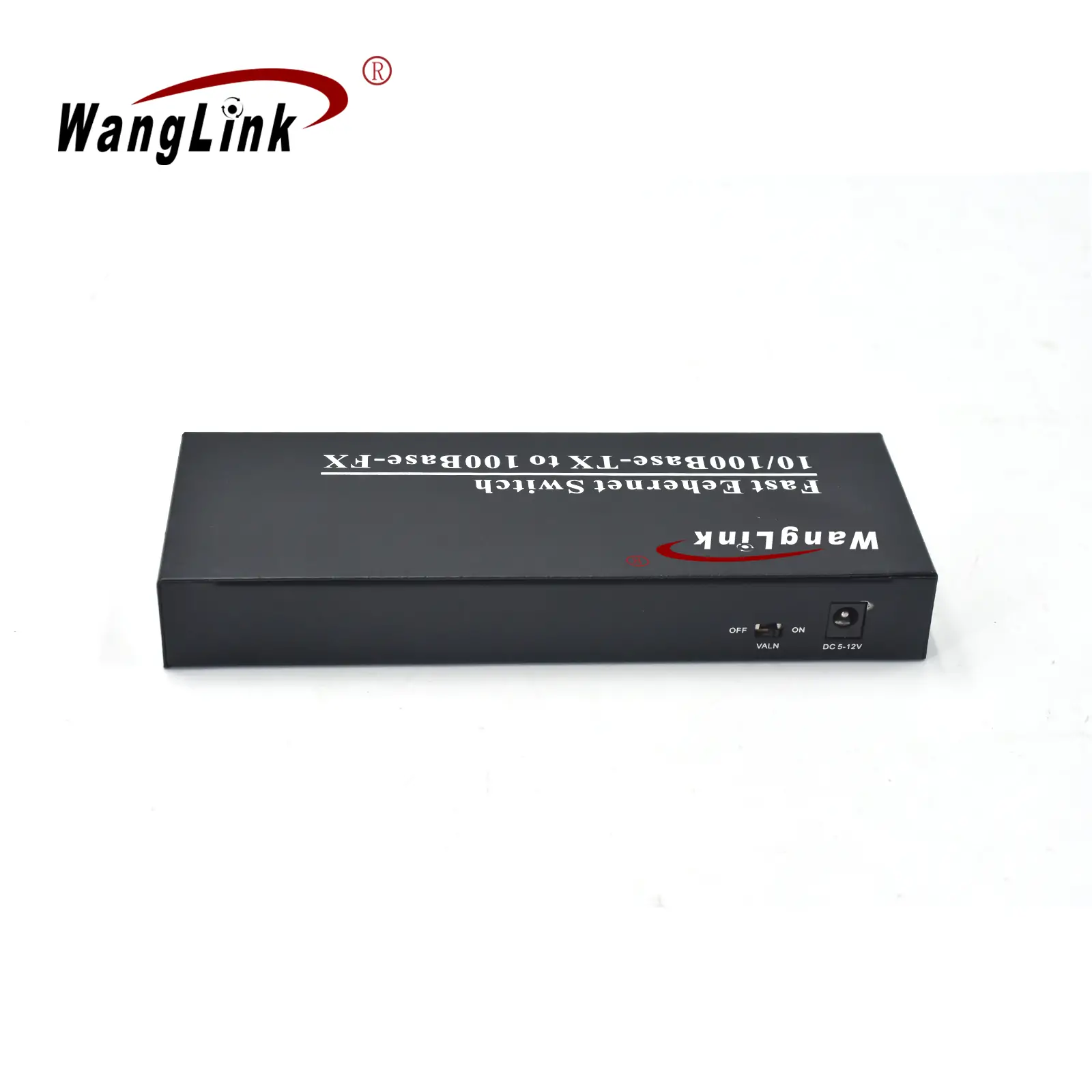

| Power supply | Input voltage: DC 5V-12V |
| Power consumption: < 3 W | |
| Indicator | Ethernet port:100M Indicator: 100M Green;Vlan OFF: All ports can communicate with each other;Vlan ON: VLAN mode, where ports 1-4 are isolated from each other but can all communicate with the fiber port. |
| Fiber Port:FX1-4 Indicators: 100M Green; | |
| Power supply: Green |
