Product Overview

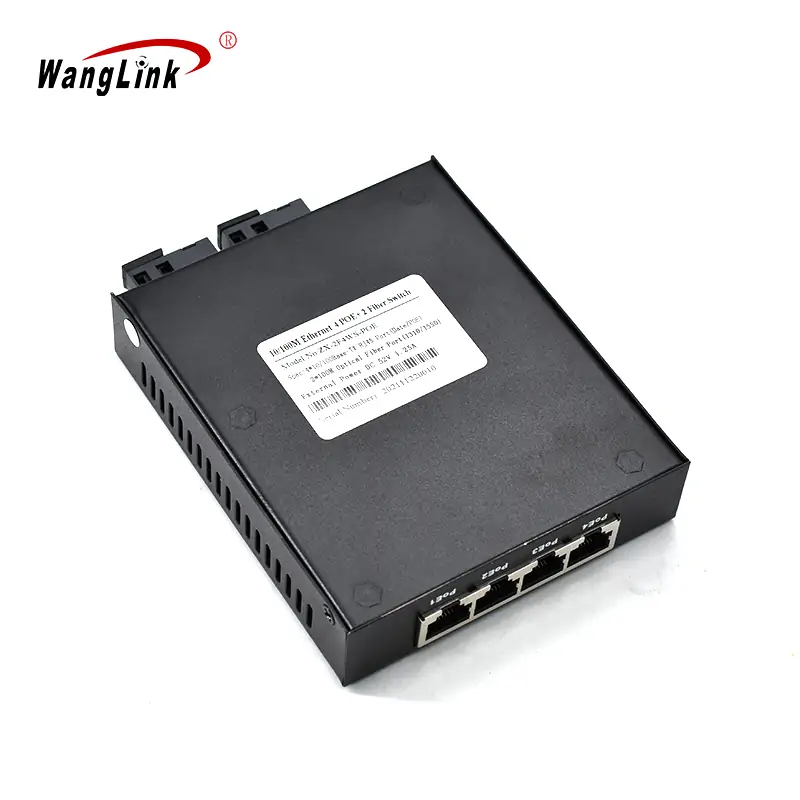

The CF402P Fiber Media Converter with PoE is an efficient networking solution designed to connect fiber optic and Ethernet devices seamlessly. This switch features 2 155Mbps SC fiber ports and 4 10/100Mbps Ethernet ports, supporting the IEEE 802.3 af/at Power over Ethernet (PoE) standards with a maximum output of 25.4W per port. The device intelligently detects whether connected powered devices are PoE compliant, ensuring only compatible devices receive power, thereby preventing damage to non-PoE equipment.
Key Features
- Four 10/100Base-TX Ethernet ports and two 100Base-X SC fiber optic ports for versatile connectivity.
- Supports IEEE 802.3 af/at PoE standards, delivering up to 25.4W of power through RJ45 ports.
- Each Ethernet port features 10/100Mbps speed auto-negotiation for optimal performance.
- Supports half/full duplex auto-negotiation and automatic MDI/MDI-X crossover, simplifying installation and setup.
- Wire-speed forwarding on all Ethernet ports enhances data transmission efficiency.
- Utilizes low-power consumption chips for stable and reliable performance with easy maintenance.
- Plug-and-play design allows for quick installation with no configuration necessary.
- Constructed with a robust metal housing for excellent heat dissipation, ensuring long-term stable operation.
Ideal Applications

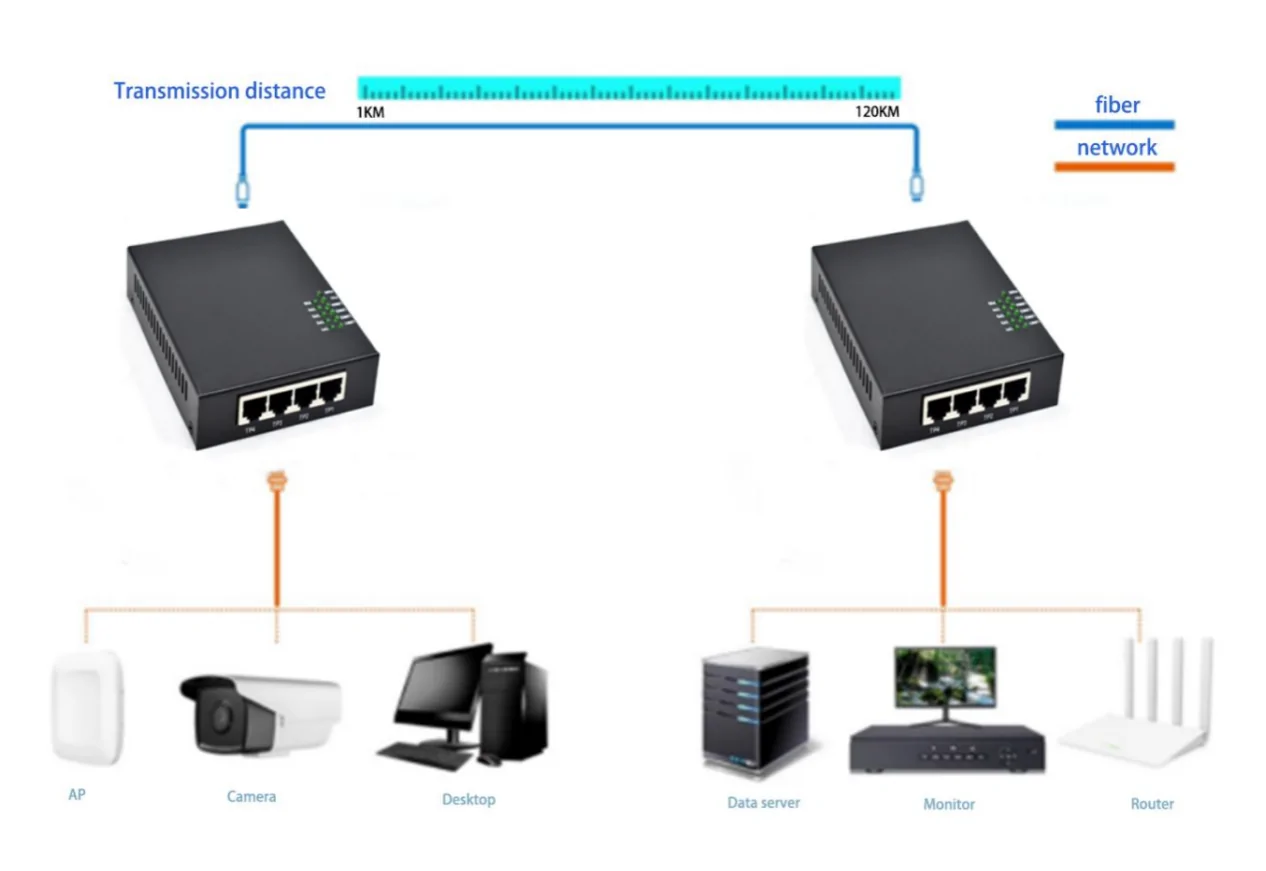

The CF402P Fiber Media Converter with PoE is perfect for video surveillance networking and is suitable for various commercial environments, including hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3z 100Base-SX/LX standards IEEE 802.3af/at Power Over Ethernet IEEE802.3x Flow control, |
| Interface information | Single mode SC optical port: 2 100Base-X optical ports(SC/FC/SFP optional) |
| Transmission rate: 155m | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 ethernet port: 4 10/100M Base-T ethernet ports (standard RJ45) | |
| 10/100Mbps auto-negotiation | |
| 10Base-T: ≤100m (CAT5e or above) | |
| 100Base-TX: ≤100m (CAT5e or above) | |
| Mechanical Properties | Shell material: metal shell |

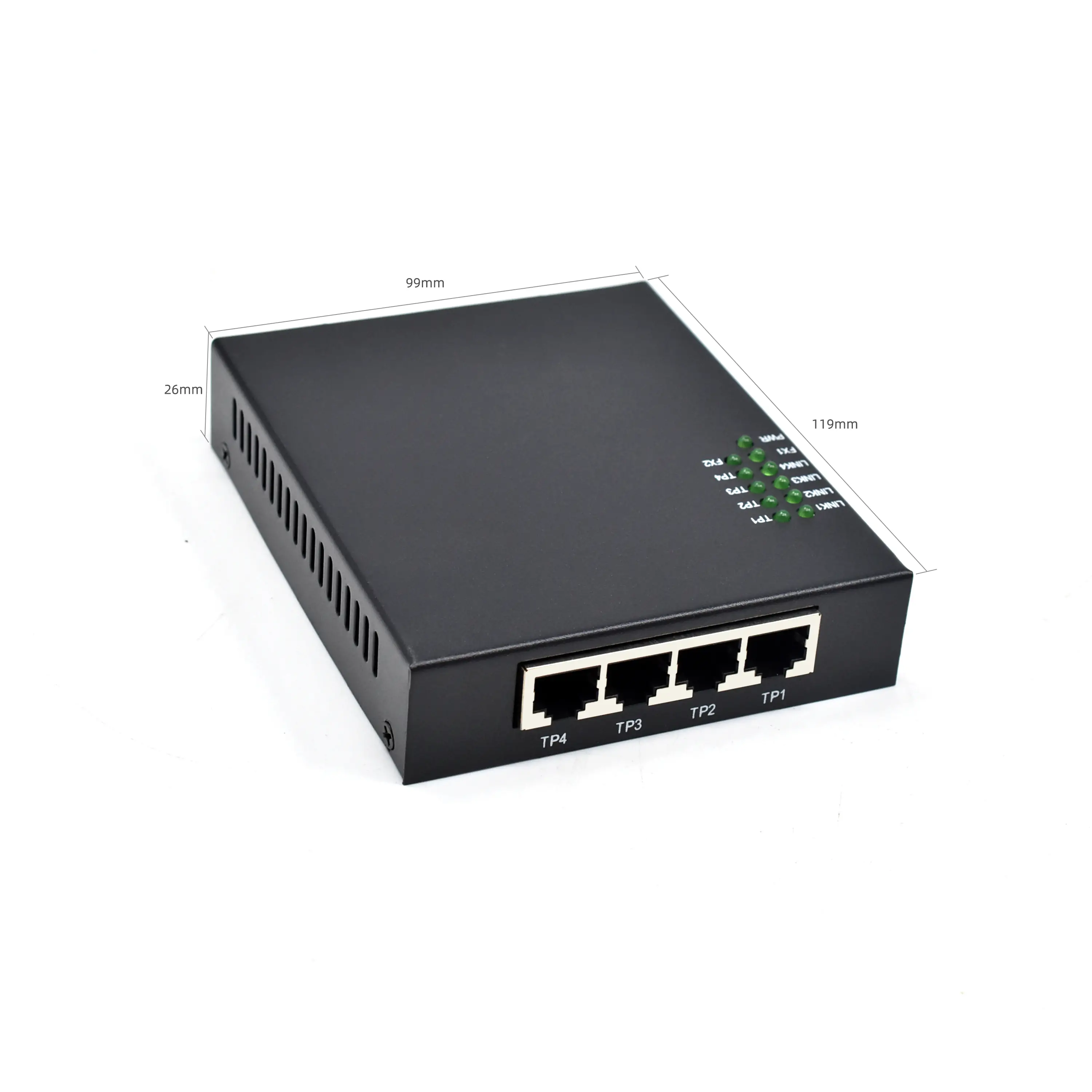

| Appearance size (length * depth * height): 119mm×99mm×26mm | |
| Installation method: Desktop, Rack-mount | |
| Cooling method: natural cooling, no fan | |
| Weight: < 0.26Kg | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+75℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.2Gbps |
| Packet forwarding rate (entire device): 0.8928Mpps. | |
| Switching method: Store-and-forward. | |
| MAC address table: 2K entries. | |
| Packet buffer: 768 Kbits. | |
| Jumbo frame: 2K. | |
| Power supply | Input voltage: DC 48V-52V |
| Minimum power consumption: 3 W | |
| PoE PIN | 802.3AF/AT(1/2+，3/6-) |

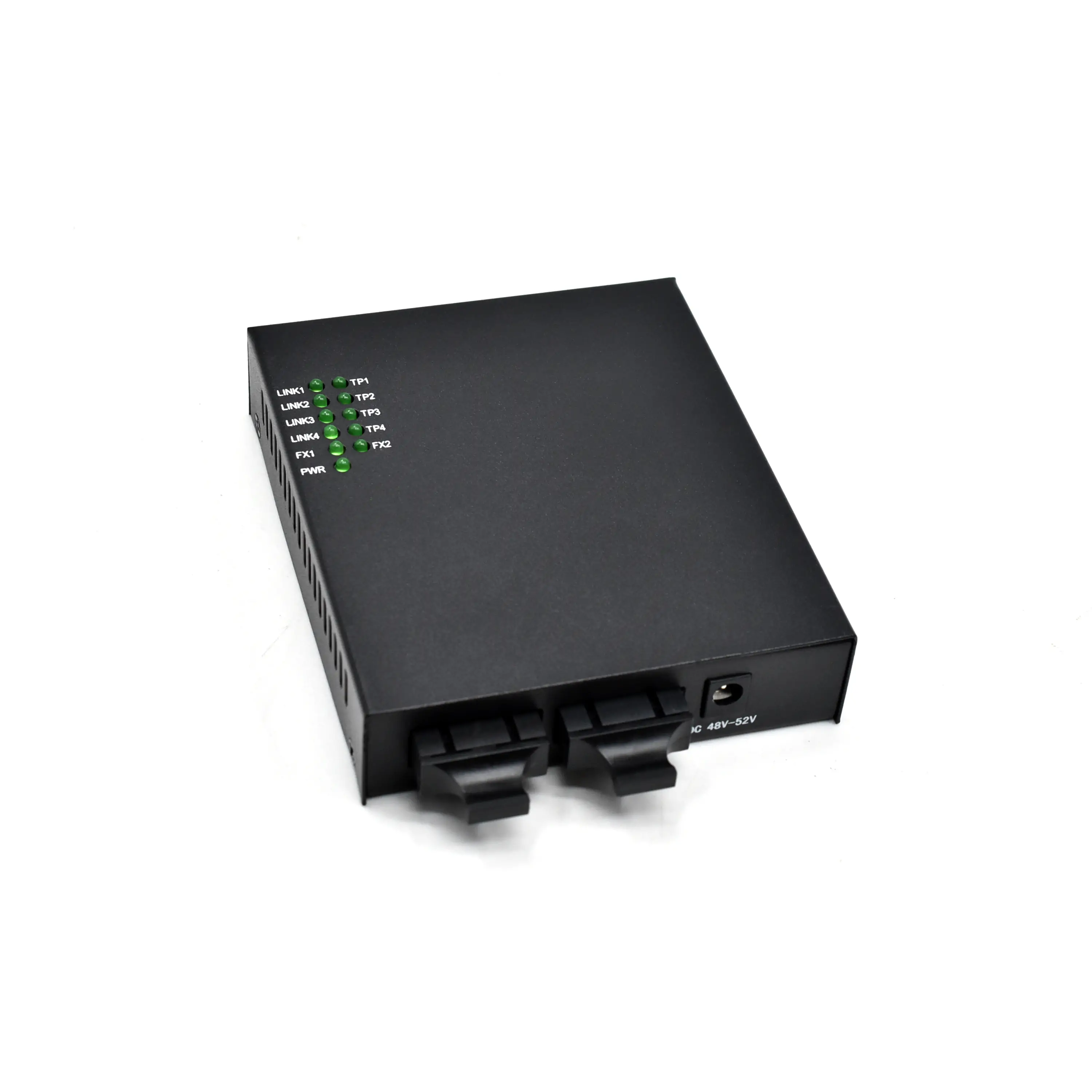

| Indicators | Ethernet Port LEDs: POE Indicator: Green (TP1-TP4)LINK/ACT Indicator: Green |
| Optical Port LED:FX Indicator: Green(FX1-FX2) | |
| Power LED (PWR): Green |
