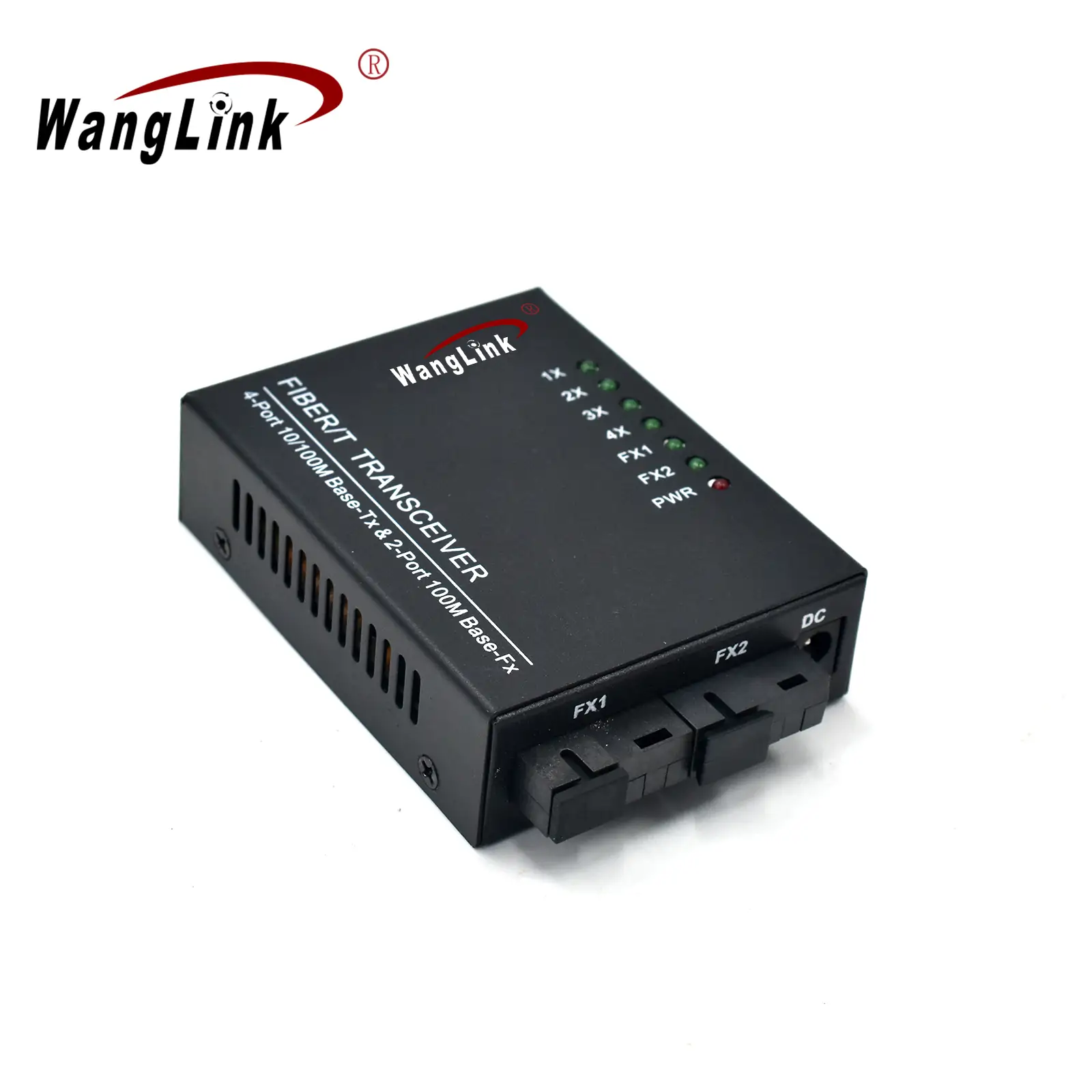

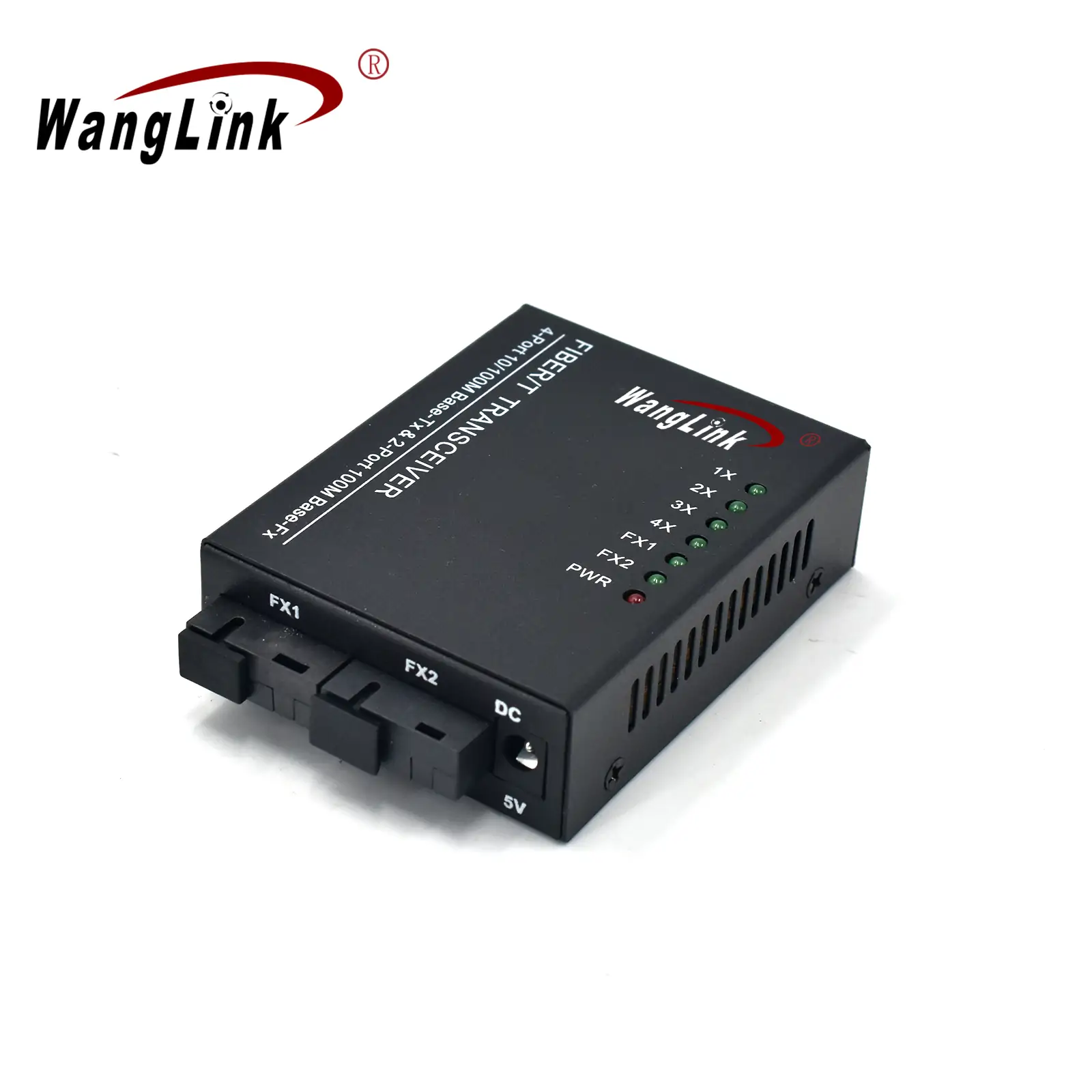

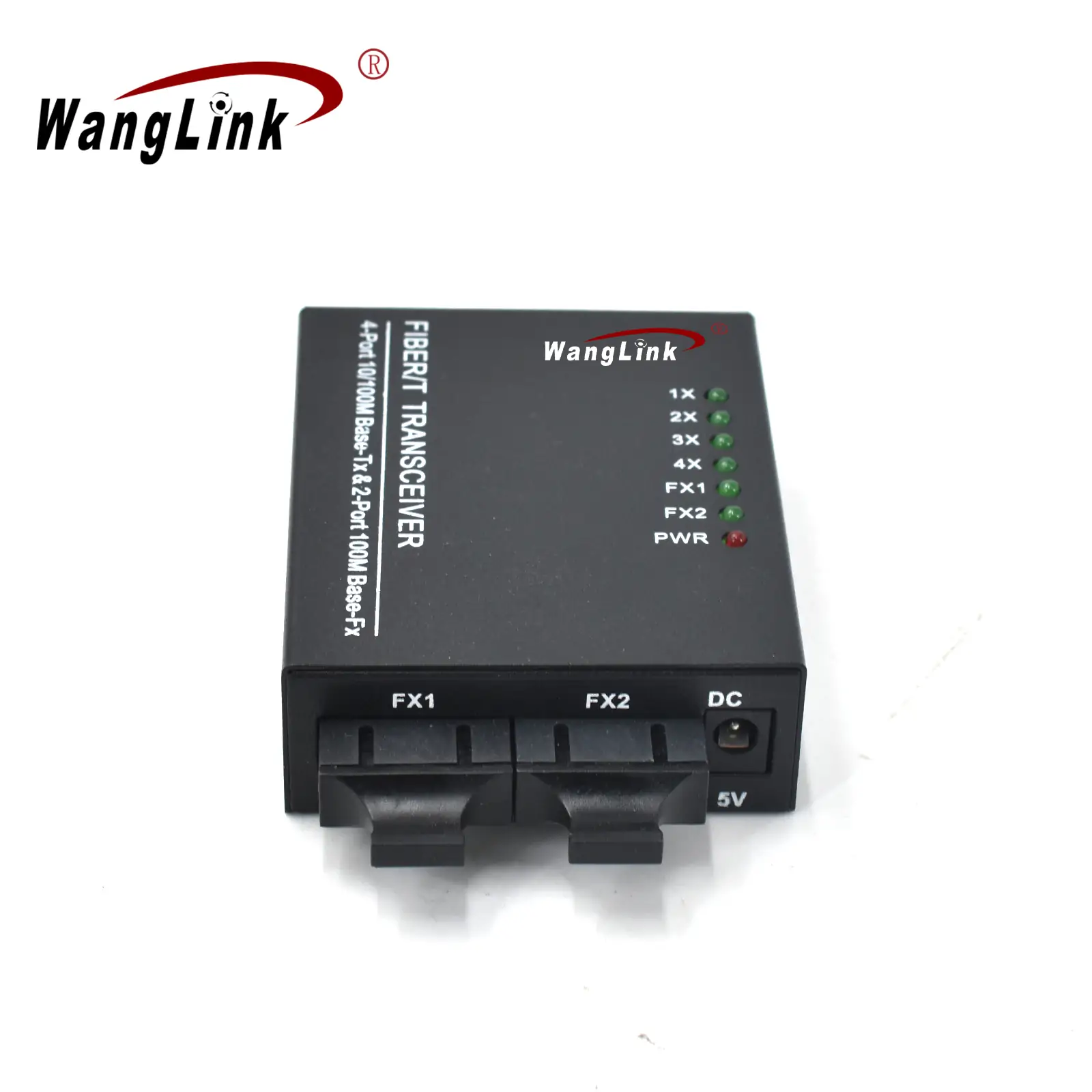

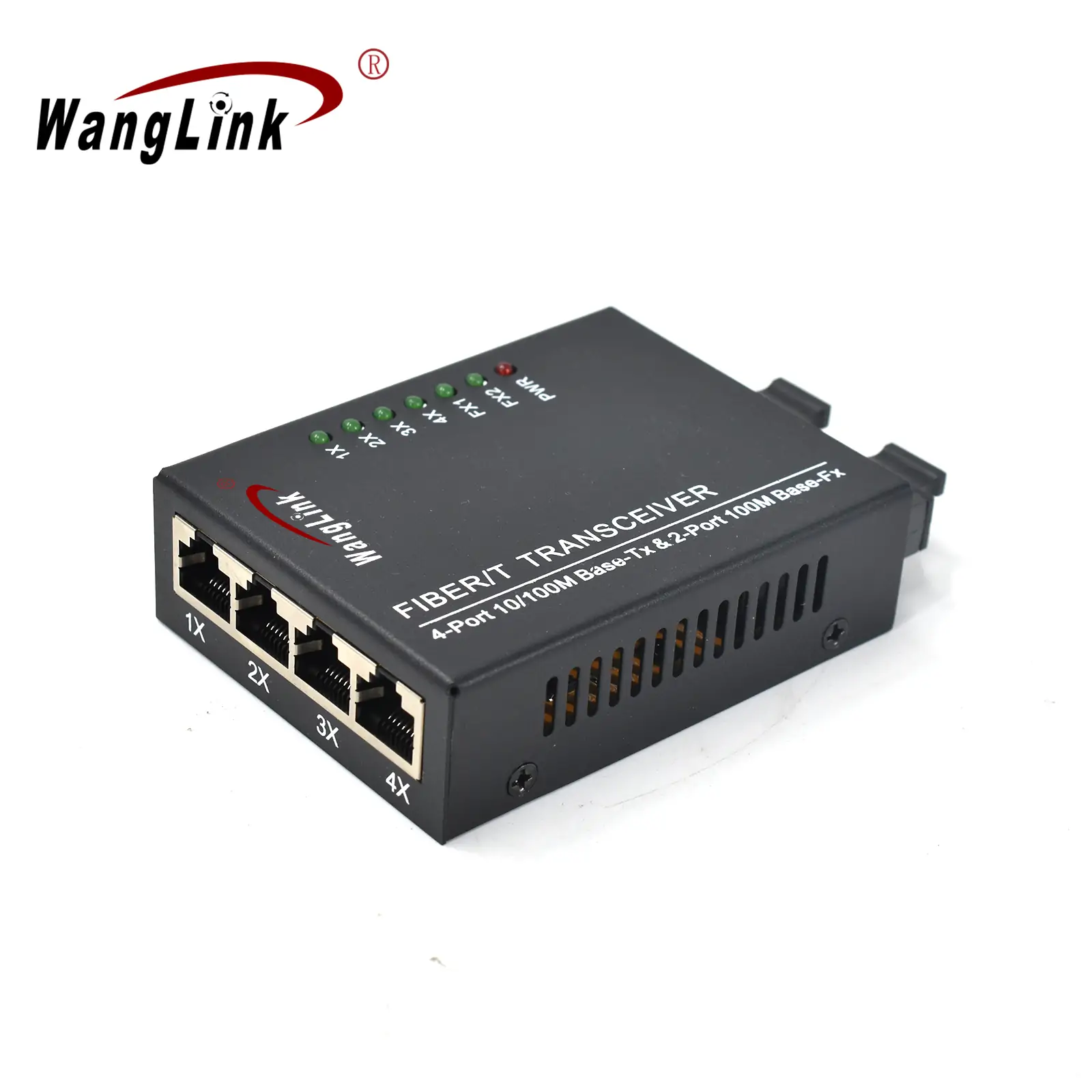

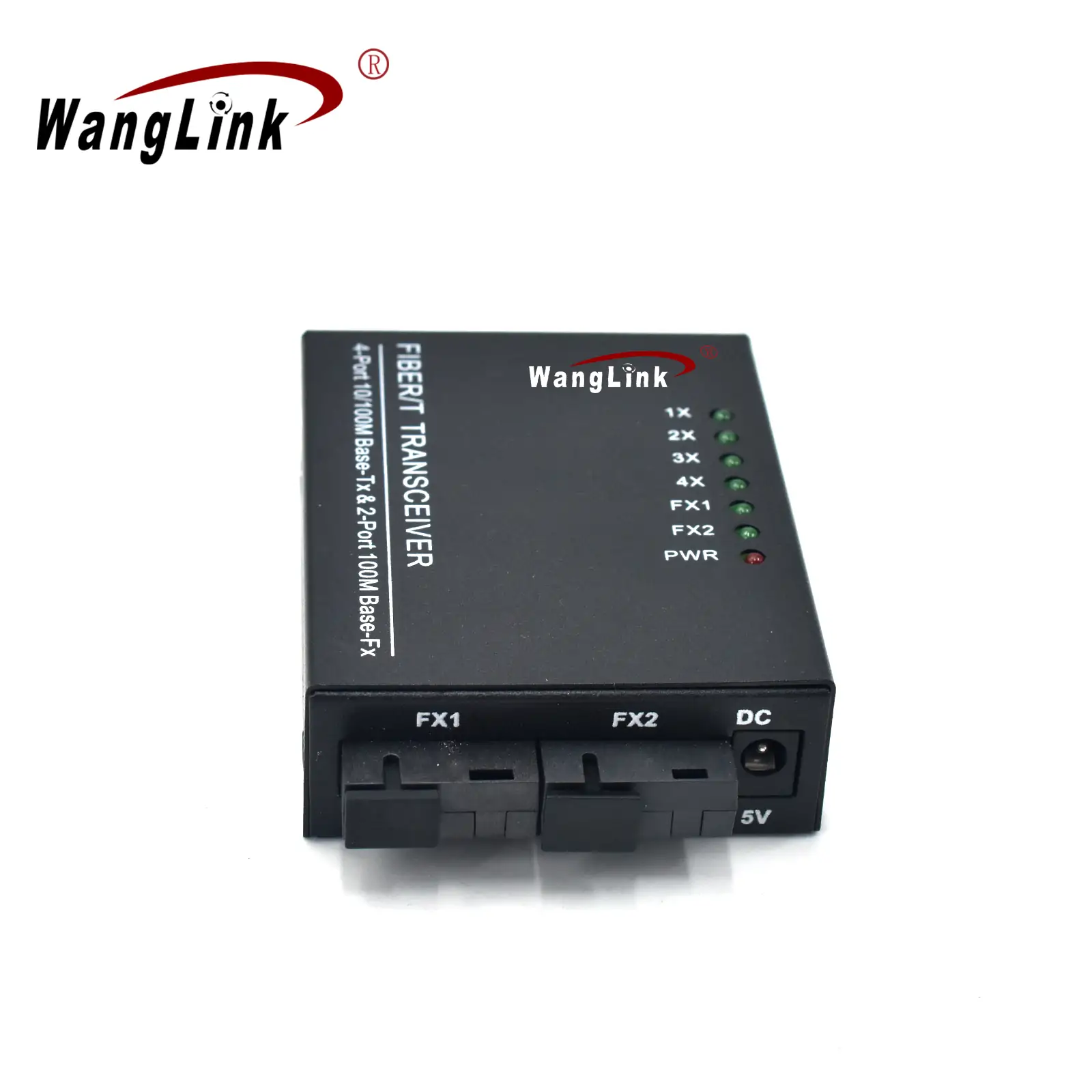

Product Overview

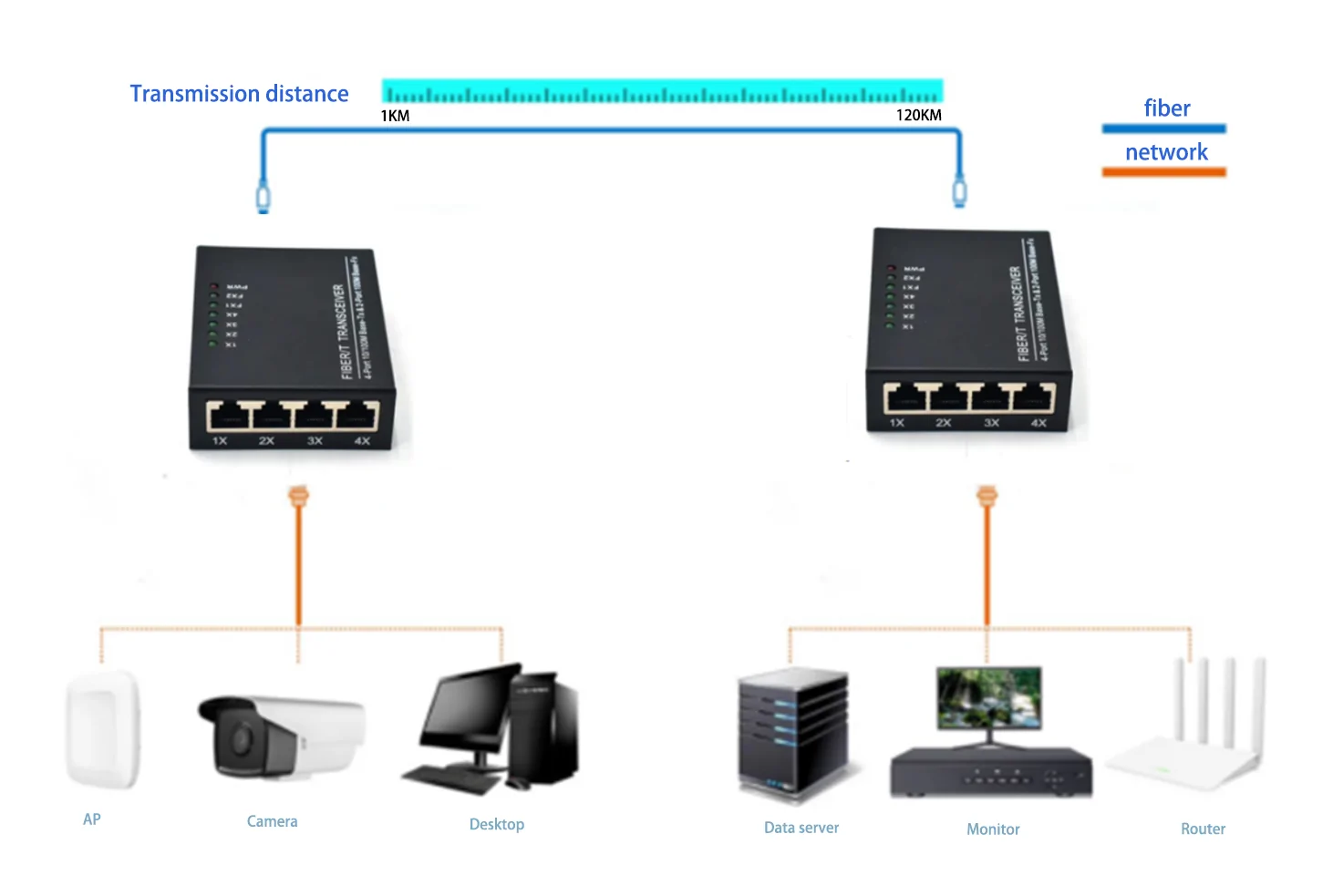

The CF402 is a 4 port media converter designed to facilitate seamless data transfer between 100Base-T twisted pair cables and 100Base-SX/LX optical fibers. Equipped with two 155MM SC optical ports and four 10/100Mbps Ethernet ports, this Ethernet fiber switch extends the network transmission distance from the 100 meters limit of twisted pair cables to an impressive 120 kilometers over optical fibers. The installation of this fiber optic switch is straightforward and convenient, featuring a plug-and-play design that requires no configuration. All optical and electrical interfaces adhere to international standards, ensuring compatibility. The CF402 provides isolation protection, maintains data confidentiality, operates stably, and is easy to maintain, making it suitable for various commercial and industrial environments.
Key Features
- Port Configuration: Features four 10/100Base-TX Ethernet ports and two 100Base-X optical ports.
- Jumbo Frame Support: Supports 2K jumbo frame transmission for high-capacity data transfer.
- Auto-Negotiation: All ports support 10/100Mbps auto-negotiation for flexible connectivity.
- Duplex Compatibility: All ports are capable of half/full duplex auto-negotiation, enhancing transmission efficiency.
- Automatic Crossover: Incorporates automatic MDI/MDI-X crossover for seamless network integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding, ensuring smoother data transmission.
- Easy to Use: Designed for plug-and-play operation, allowing for simple installation with no configuration needed.
- Durable Design: Constructed with a metal casing for excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3z 100Base-SX/LX standardsIEEE802.3x Flow control |
| Interface information | Single-mode SC optical port: 2 100Base-X optical port (SC/FC/SFP optional) |
| Transmission rate: 155M | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 4 10/100M Base-TX network ports (standard RJ45) | |
| 10/100Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

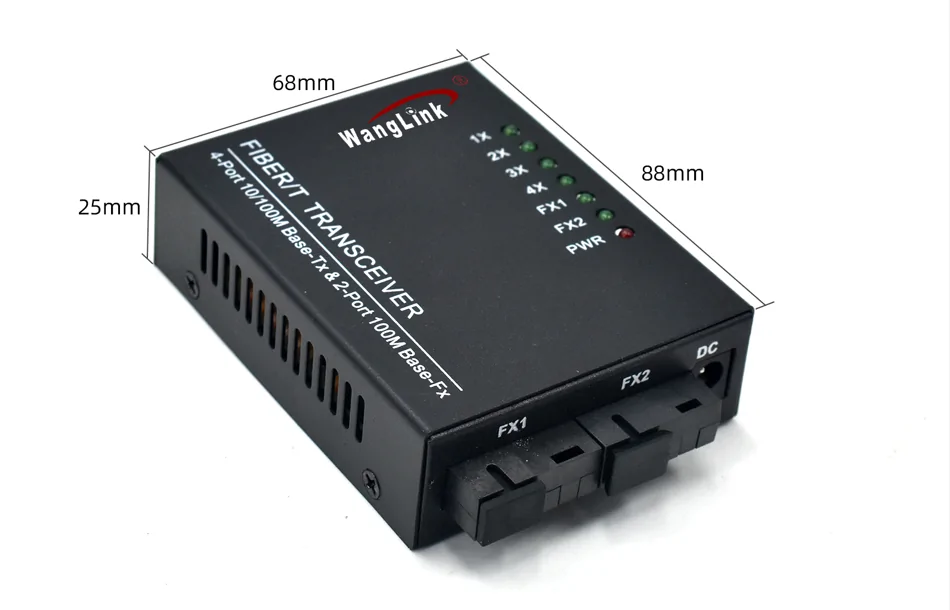

| Appearance dimensions (length*depth*height): 88mm×68mcm×25mm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.2KG | |
| Environmental properties | Working temperature: -10℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.2Gbps |
| Packet forwarding rate (whole machine) : 0.8928 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Packet buffer : 768Kbit | |
| Jumbo frame: 2048b | |
| Power supply | Input voltage: DC 5V-12V |
| Power consumption: < 3 W | |
| indicator light | Ethernet port: green |
| FX1-FX2: Green. | |
| Power supply: Red |
