Product Overview

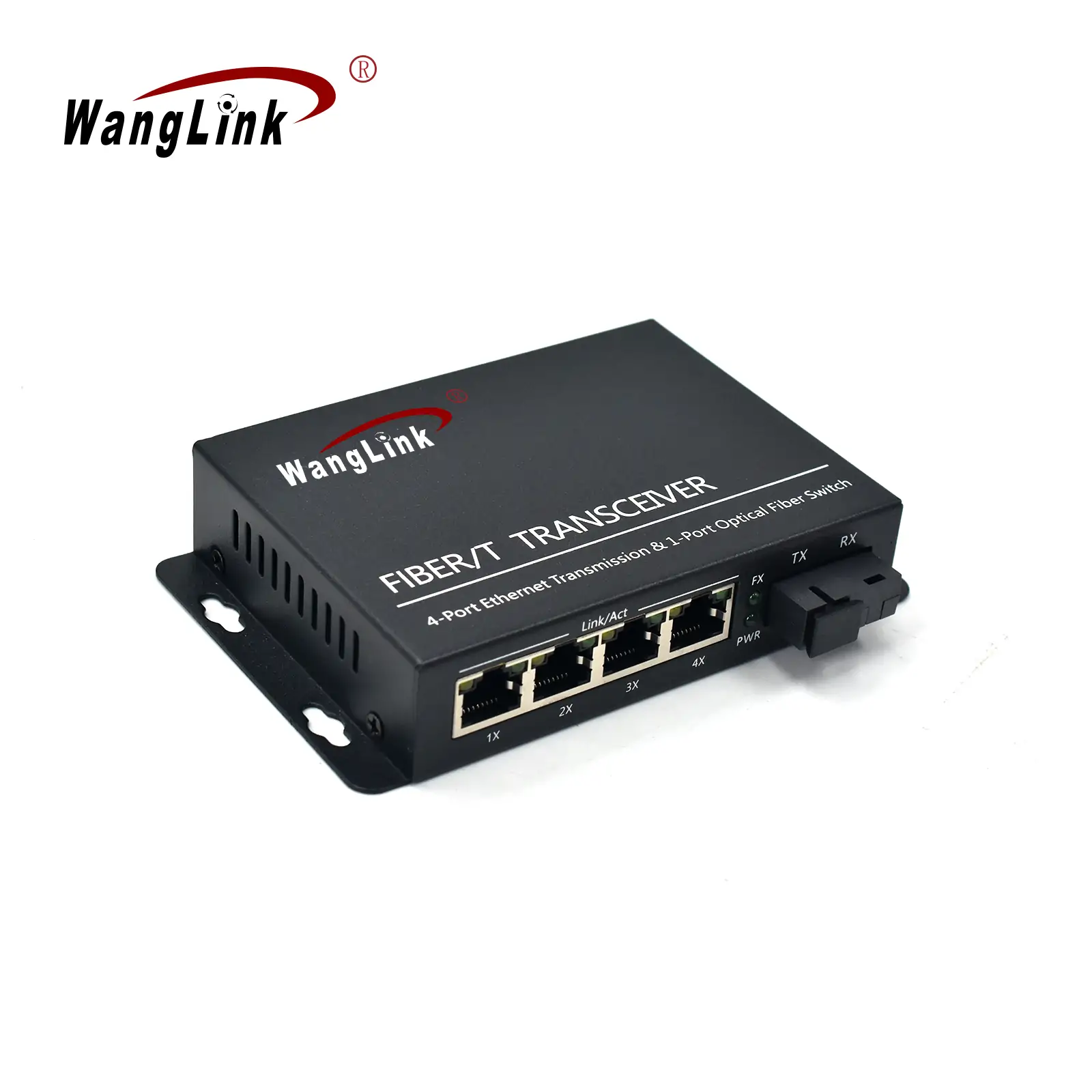

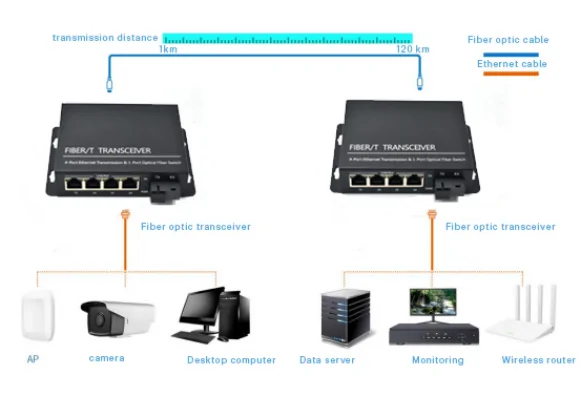

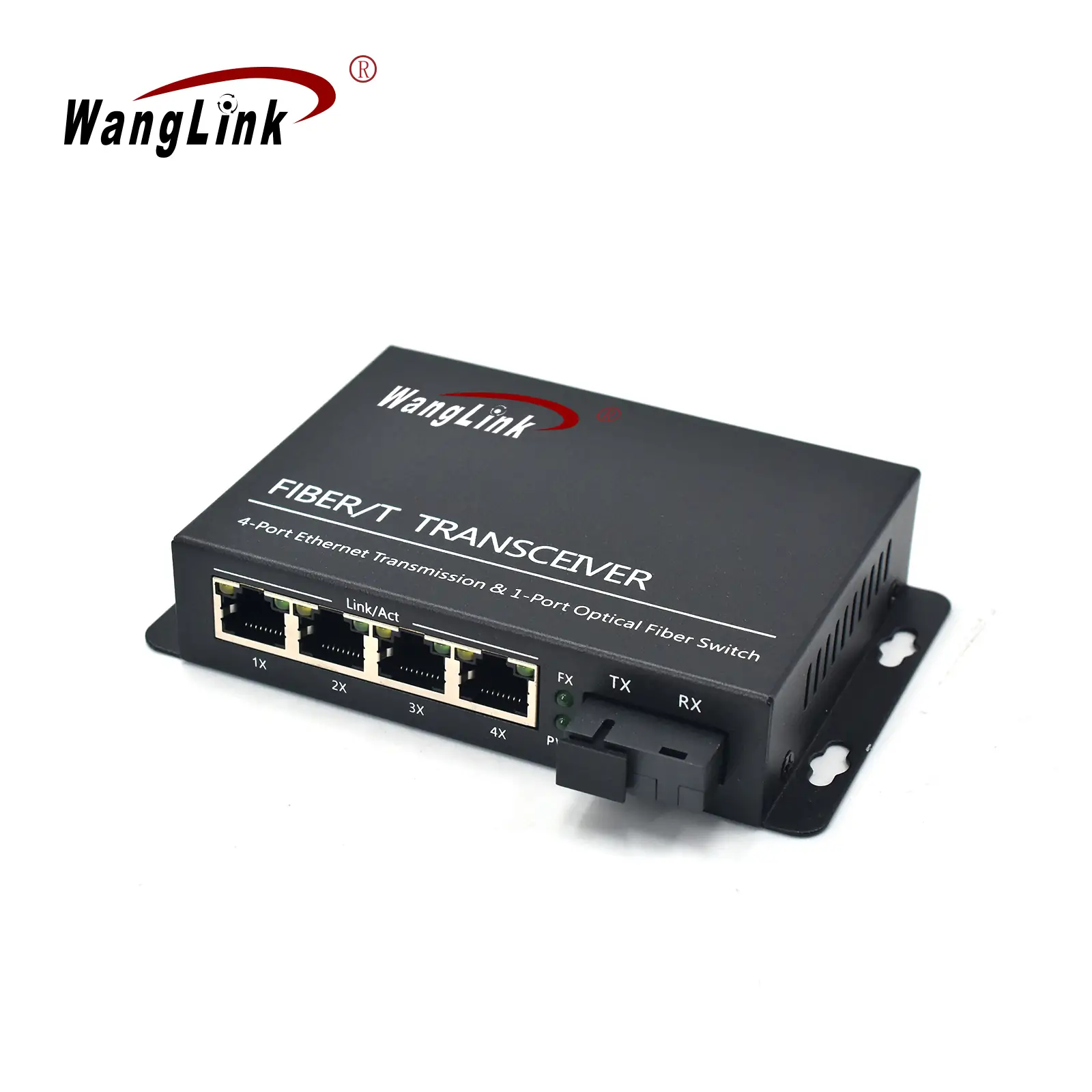

The CF401 is a media converter fiber featuring one 155MM SC optical port and four 10/100Mbps network ports. This Ethernet fiber switch enables seamless data communication between 100Base-T twisted pair cables and 100Base-SX/LX optical fibers, extending the maximum transmission distance from 100 meters with twisted pair to an impressive 120 kilometers with optical fiber. The installation of this fiber optic switch is straightforward and convenient, offering a plug-and-play design that requires no configuration. All optical and electrical interfaces comply with international standards, ensuring compatibility. The CF401 provides isolation protection, maintains robust data confidentiality, operates stably, and is easy to maintain, making it suitable for various commercial and industrial environments.
Key Features
- Equipped with four 10/100Base-TX RJ45 ports and one 100Base-X optical port.
- Supports transmission of ultra-large data packets up to 2K.
- All Ethernet ports support 10/100Mbps rate adaptation for versatile connectivity.
- Provides half/full duplex auto-negotiation and automatic MDI/MDI-X functionality for seamless integration.
- Supports line-speed forwarding across all ports, ensuring smoother data transmission.
- Designed for plug-and-play operation, making it easy to use without configuration.
- Constructed with a metal shell for excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3z 100Base-SX/LX standards IEEE802.3x Flow control, |
| Interface information | RJ45 port: 4 10/100M Base-T X port |
| Single-mode SC optical port: 1 100Base-X optical port | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multimode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 port: 4 10/100M Base-TX ethernet ports (standard RJ45) | |
| 10/100Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

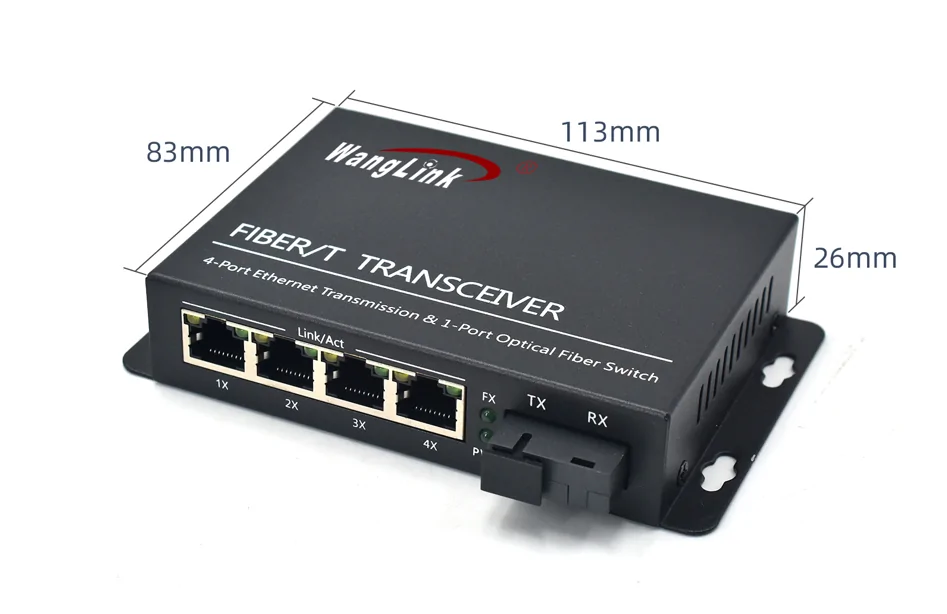

| Appearance dimensions (length*depth*height): 113mm×83mm×26mm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.26KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1Gbps |
| Packet forwarding rate (whole machine) : 0.75 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 768Kbit | |
| Jumbo frame: 2048b | |

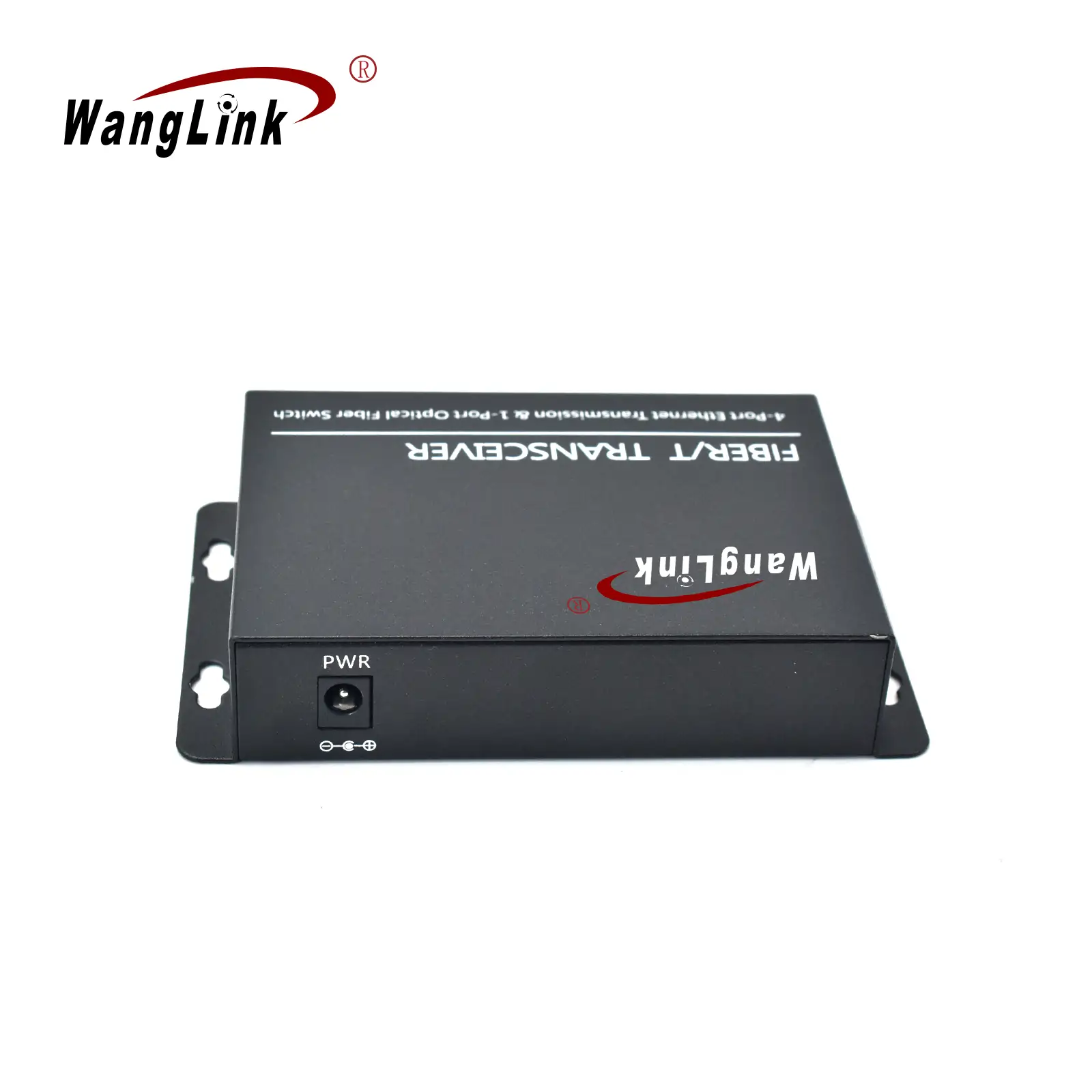

| Power supply | Input voltage: DC 5V-12V |
| Power consumption: < 3 W | |
| indicator light | Ethernet ports:100M: green;Link/ACT indicator: Green |
| Fiber port:FX: Green | |
| Power supply: Green |
