Product Overview

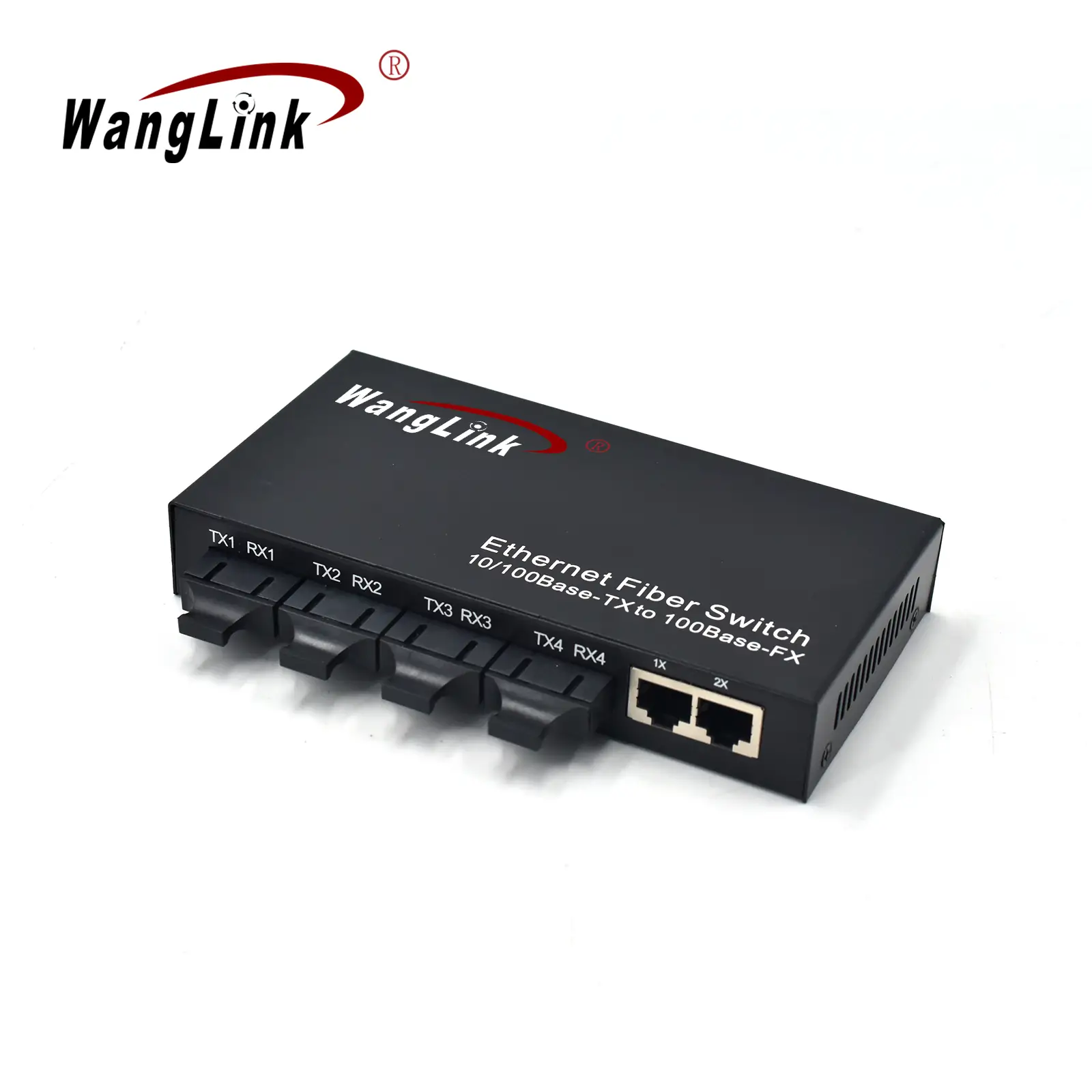

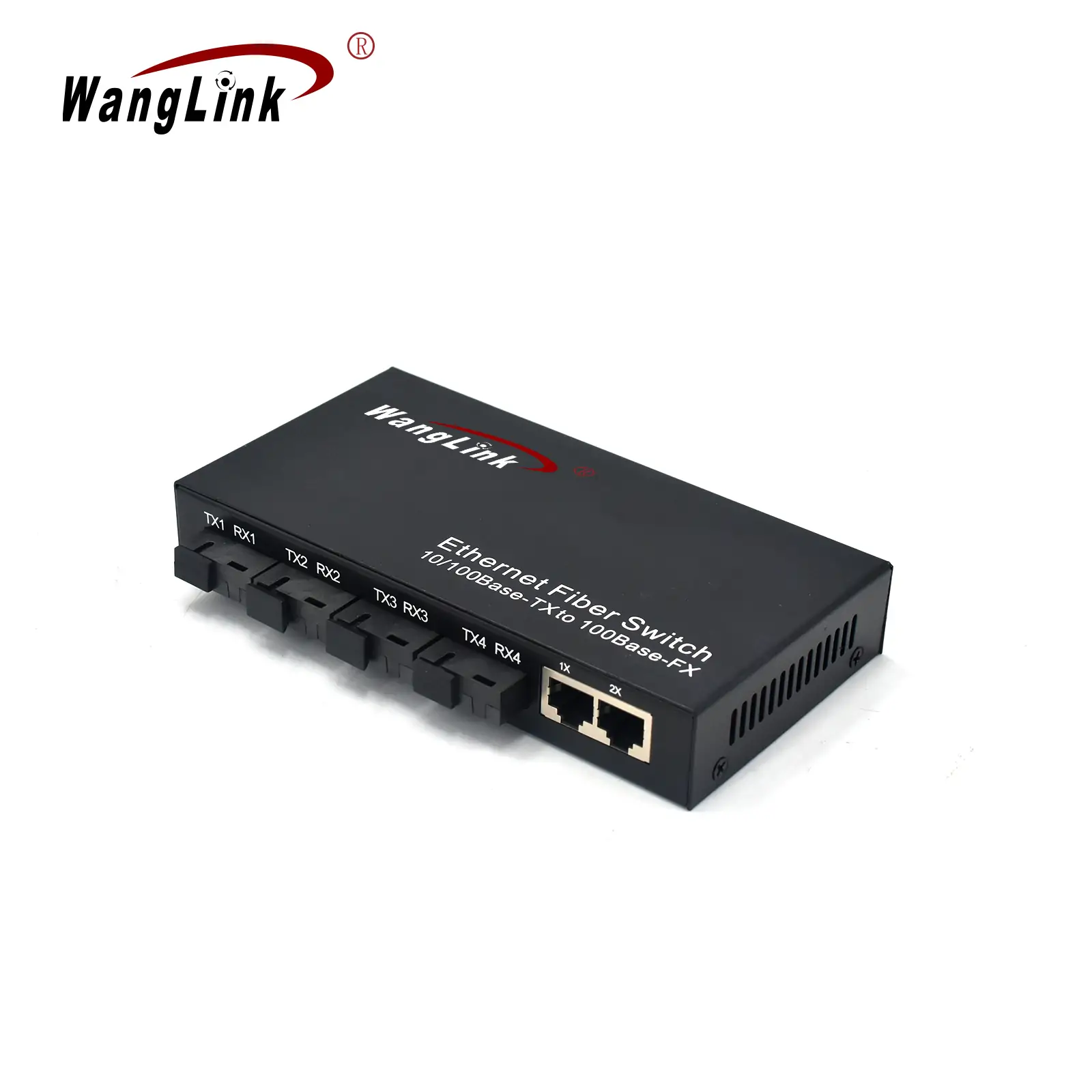

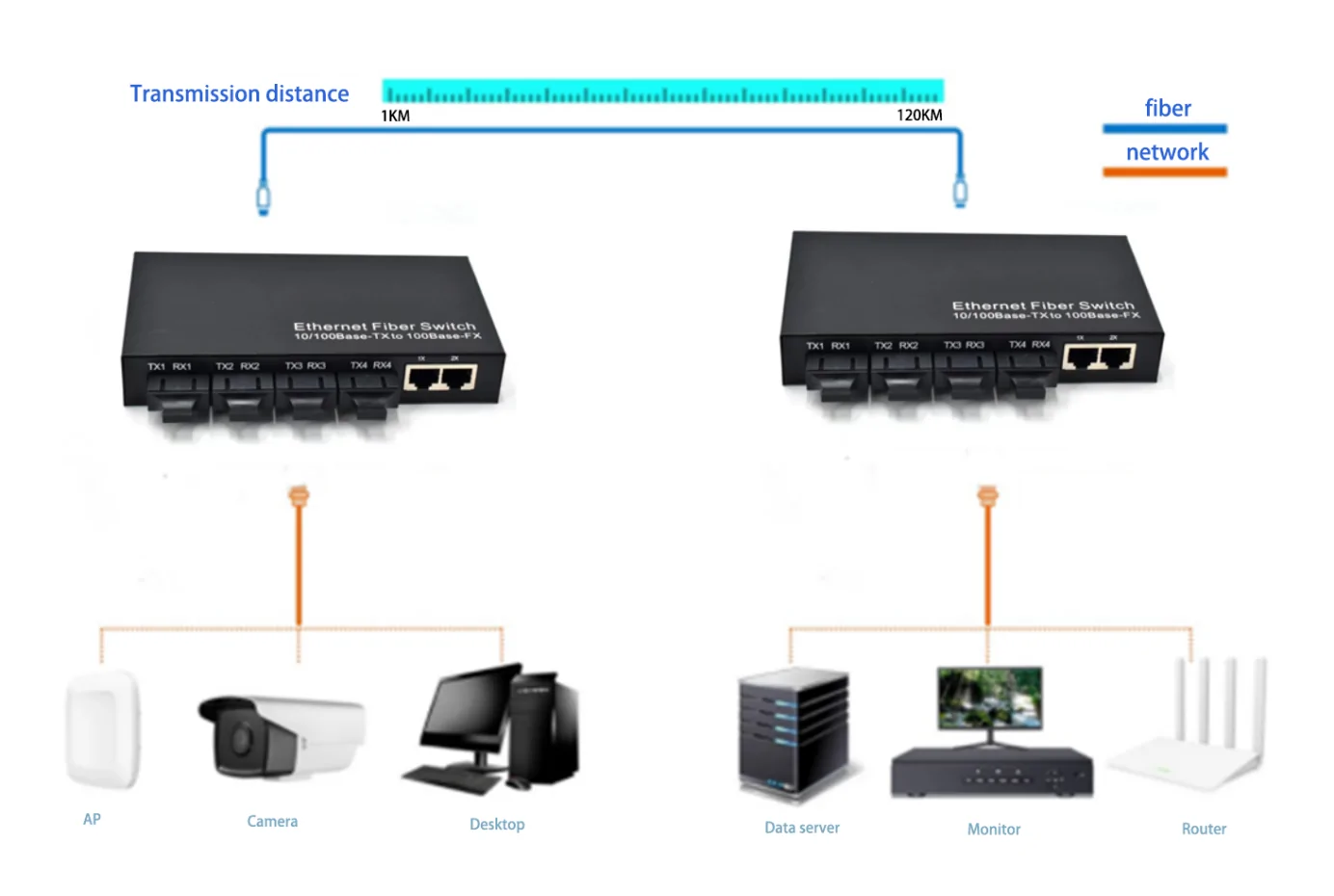

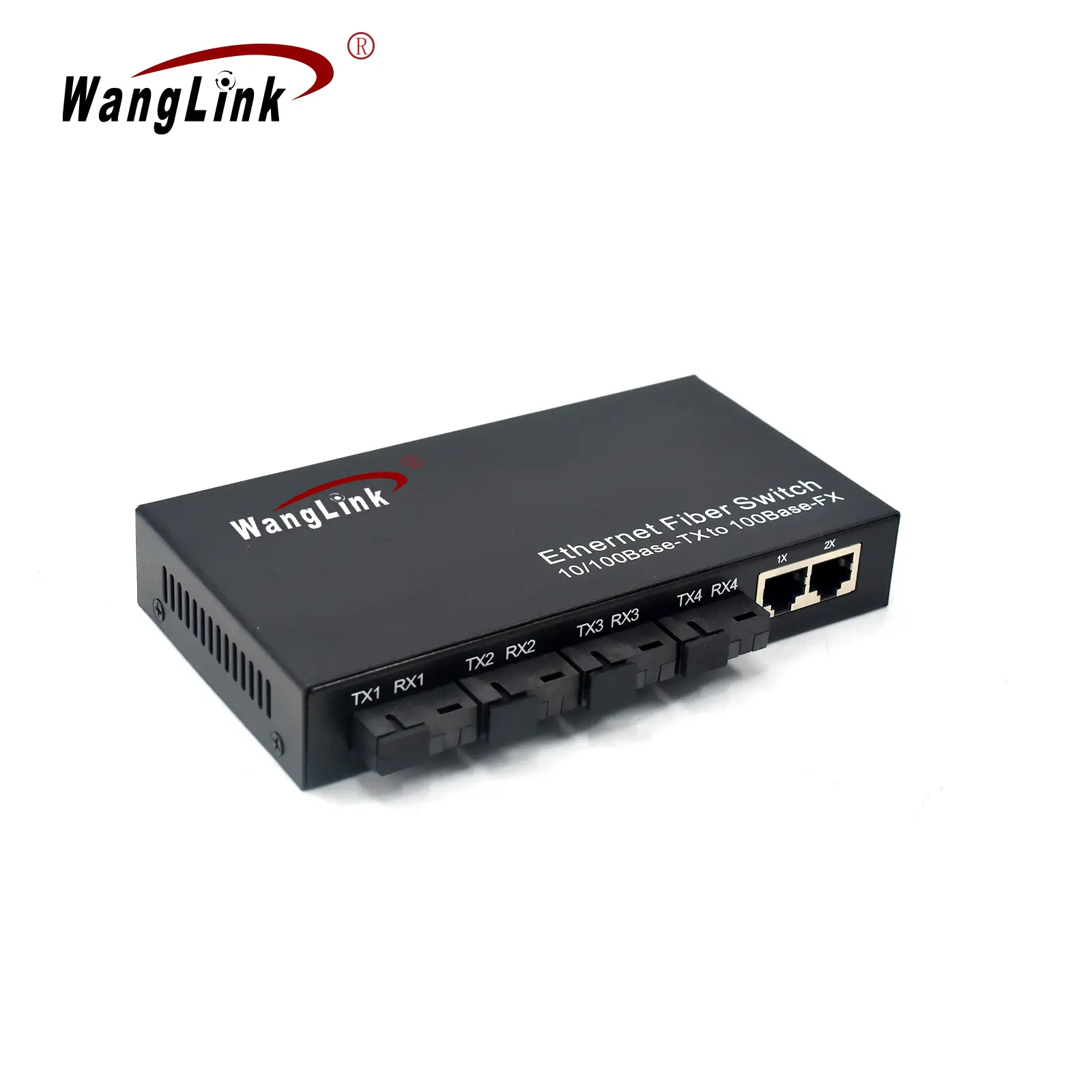

The CF204 is a fiber to Ethernet media converter designed to facilitate seamless data transfer between 100Base-T twisted pair cables and 100Base-SX/LX optical fibers. This Ethernet Fiber Switch features four 155MM SC optical ports and two 10/100Mbps Ethernet ports, allowing for the extension of network transmission distances from the 100 meters limit of twisted pair cables to an impressive 120 kilometers over optical fibers. The installation of this fiber optic switch is straightforward and user-friendly, with a plug-and-play design that requires no configuration. All optical and electrical interfaces comply with international standards, ensuring broad compatibility. The CF204 provides isolation protection, maintains data confidentiality, operates reliably, and is easy to maintain, making it ideal for various commercial and industrial environments.
Key Features
- Port Configuration: Contains two 10/100Base-TX Ethernet ports and four 100Base-X optical ports.
- Jumbo Frame Support: Capable of handling 2K jumbo frame transmission for efficient high-capacity data transfer.
- Auto-Negotiation: All ports support 10/100Mbps auto-negotiation for flexible and dynamic network setups.
- Duplex Compatibility: Supports both half and full duplex auto-negotiation across all ports to optimize data flow.
- Automatic Crossover: Features automatic MDI/MDI-X crossover for simple installation and system integration.
- Wire-Speed Forwarding: All ports are designed for wire-speed forwarding, ensuring smoother and more efficient data transmission.
- User-Friendly Design: Plug-and-play functionality simplifies operation, requiring no configuration.
- Durable Construction: Designed with a metal casing for excellent heat dissipation, ensuring long-term stable performance.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3z 100Base-SX/LX standards IEEE802.3x Flow control |
| Interface information | Single-mode SC optical port: 4 100Base-X optical port (SC/FC/SFP optional) |
| Transmission rate: 155M | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 2 10/100M Base-TX network ports (standard RJ45) | |
| 10/100Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

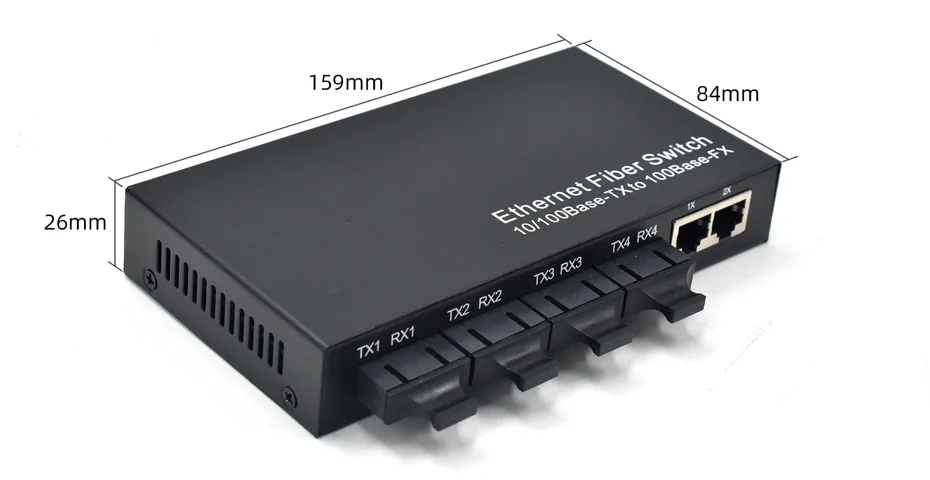

| Appearance dimensions (length*depth*height): 15.9cm×8.4cm×2.6cm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.3KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.2Gbps |
| Packet forwarding rate (whole machine) : 0.8928 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Packet buffer : 768Kbit | |
| Jumbo frame: 2048b | |
| Power supply | Input voltage: DC 5V |
| Power consumption: < 3 W | |

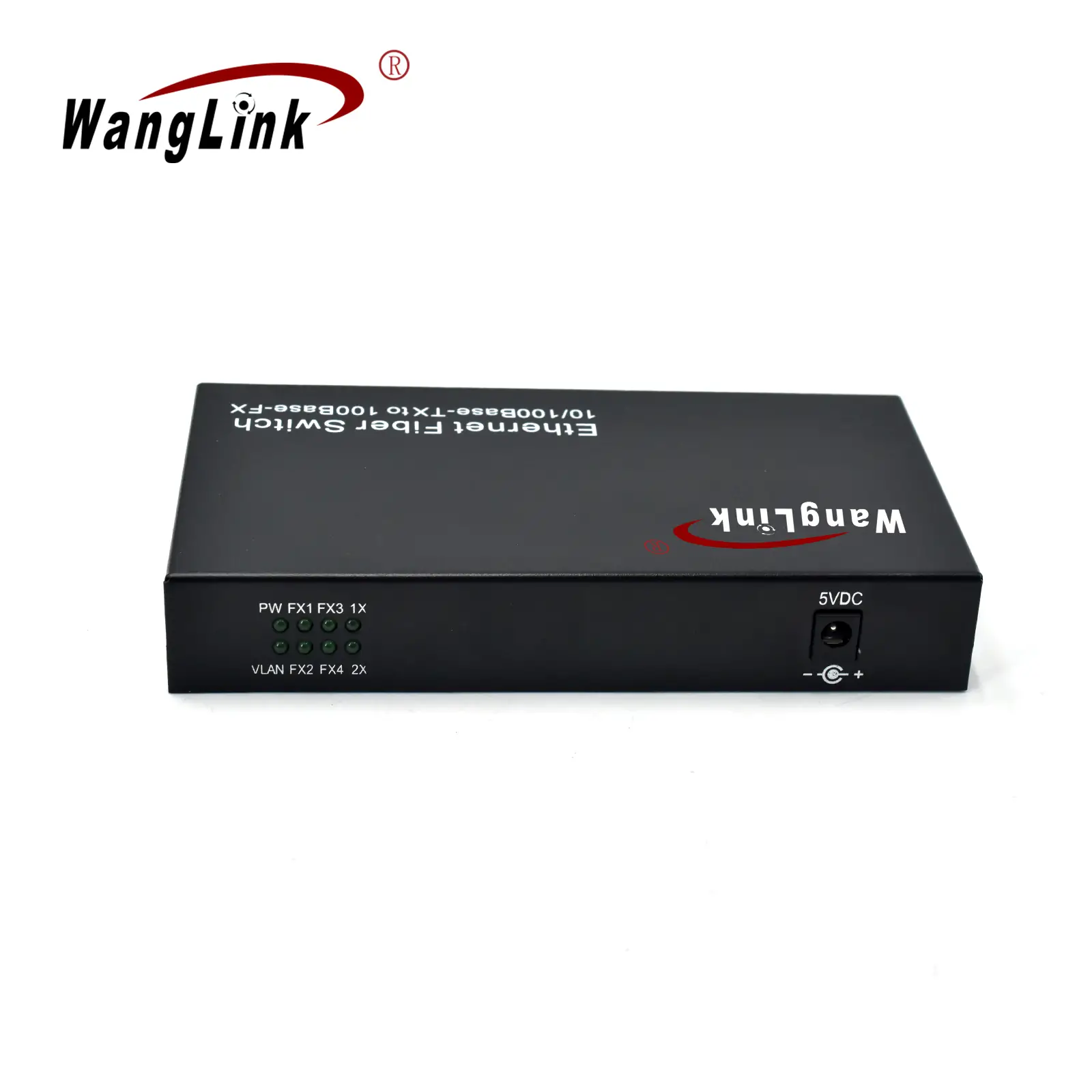

| indicator light | Port light (dip switch control):100m: yellowLink/ACT indicator: Green |
| FX Indicator: 100M FX/ACT Green. | |
| Power supply: Green |
