Product Overview

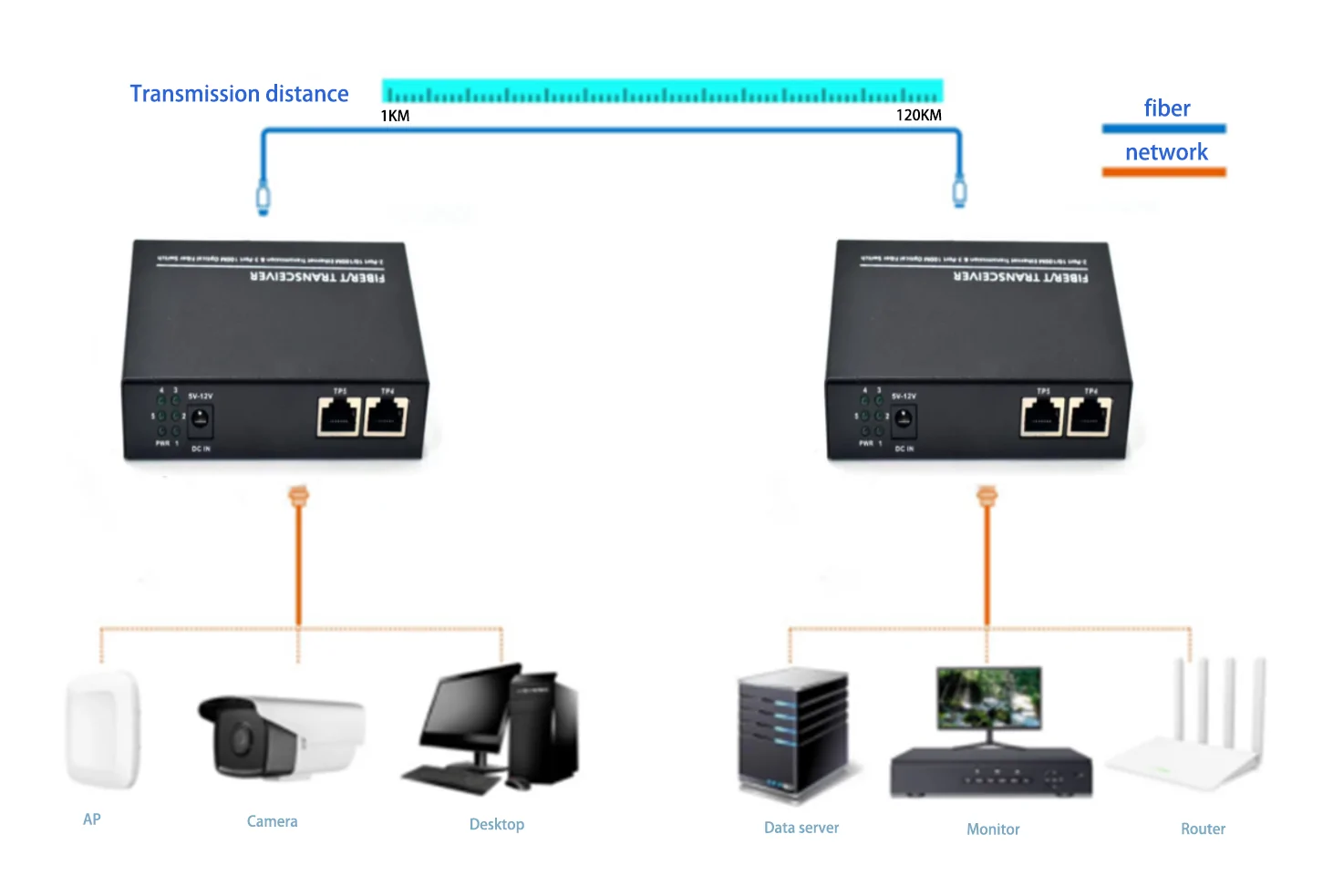

The CF203 is a media converter for fiber optic applications, designed to enable seamless data transfer between 100Base-T twisted pair cables and 100Base-SX/LX optical fibers. This Ethernet Fiber Switch is equipped with three 155MM SC optical ports and two 10/100Mbps Ethernet ports, allowing it to extend the network transmission distance from the 100 meters limit of twisted pair cables to an impressive 120 kilometers over optical fibers. The installation of this fiber optic switch is simple and convenient, featuring a plug-and-play design that requires no configuration. All optical and electrical interfaces comply with international standards, ensuring broad compatibility. The CF203 offers robust isolation protection, ensures data confidentiality, operates stably, and is easy to maintain, making it suitable for various commercial and industrial environments.
Key Features
- Port Configuration: Includes two 10/100Base-TX Ethernet ports and three 100Base-X optical ports.
- Jumbo Frame Support: Supports 2K jumbo frame transmission for efficient high-capacity data transfer.
- Auto-Negotiation: All ports support 10/100Mbps auto-negotiation for flexible and dynamic connectivity.
- Duplex Compatibility: All ports are capable of half/full duplex auto-negotiation to optimize data flow.
- Automatic Crossover: Equipped with automatic MDI/MDI-X crossover for easy installation and system integration.
- Wire-Speed Forwarding: All ports support wire-speed forwarding, ensuring smoother and more efficient data transmission.
- User-Friendly Design: Plug-and-play functionality allows for simple operation with no configuration required.
- Durable Construction: Features a metal casing for excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3z 100Base-SX/LX standards IEEE802.3x Flow control |

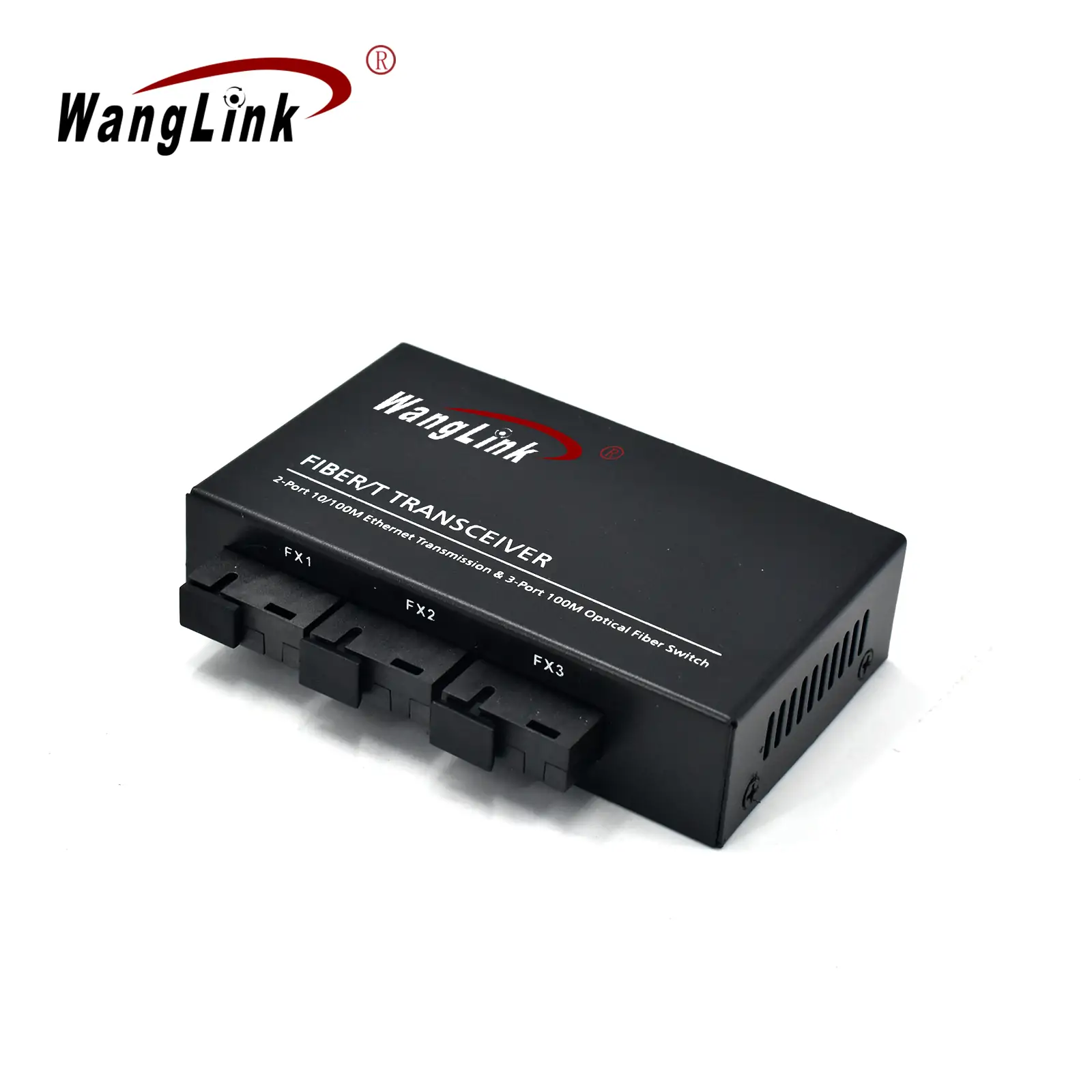

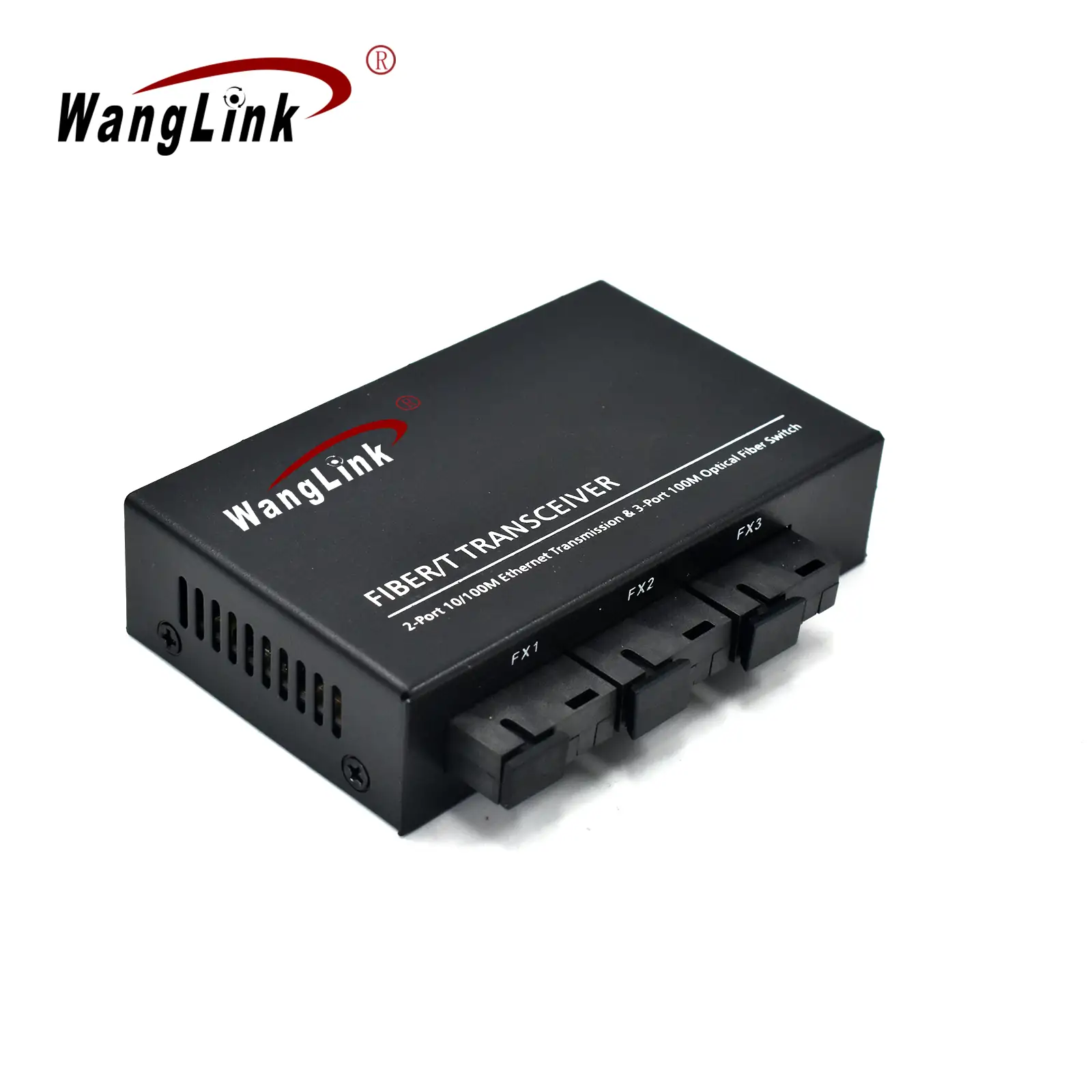

| Interface information | Single-mode SC optical port: 3 100Base-X optical port (SC/FC/SFP optional) |
| Transmission rate: 155M | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |

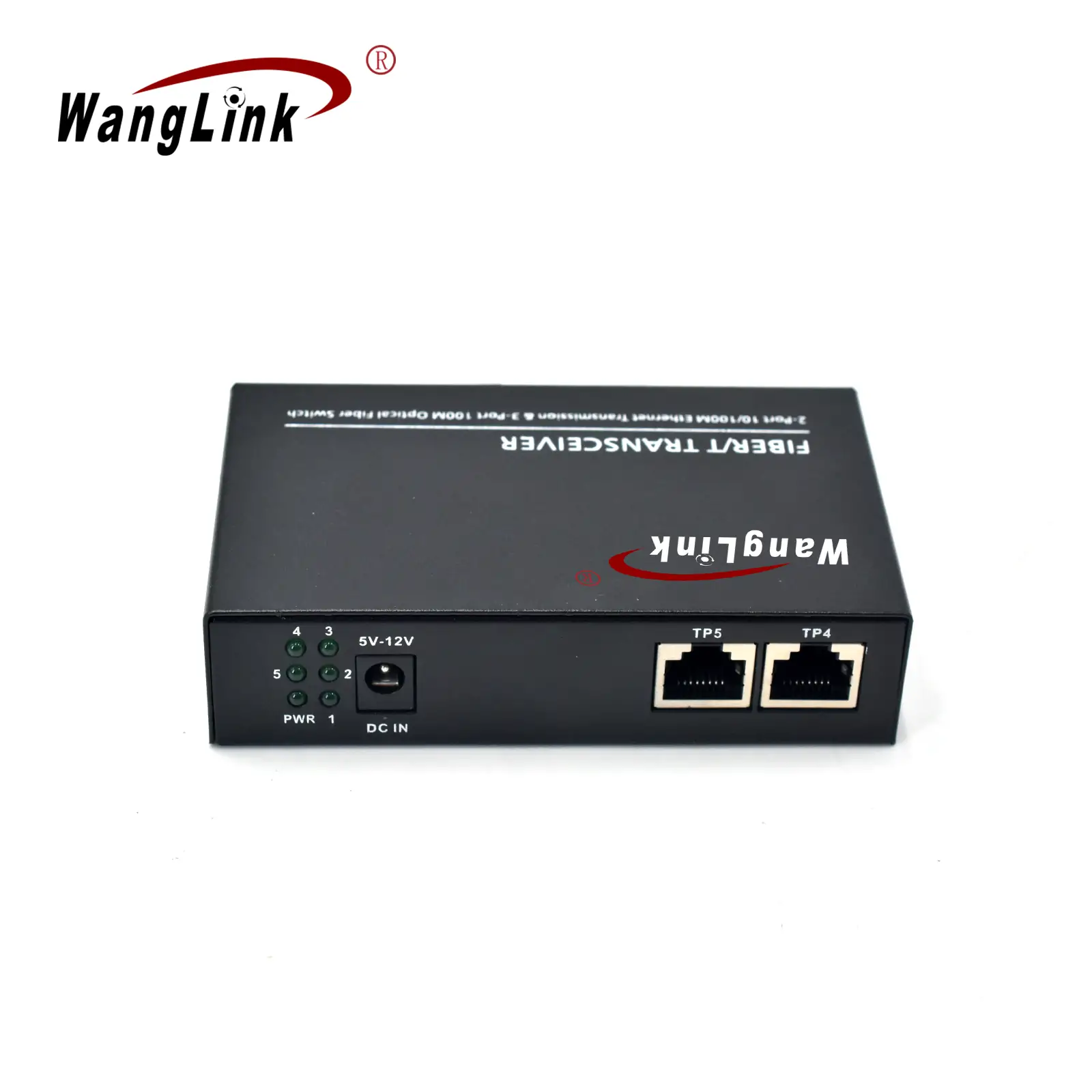

| RJ45 network port:2 10/100M Base-TX network ports (standard RJ45) | |
| 10/100Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

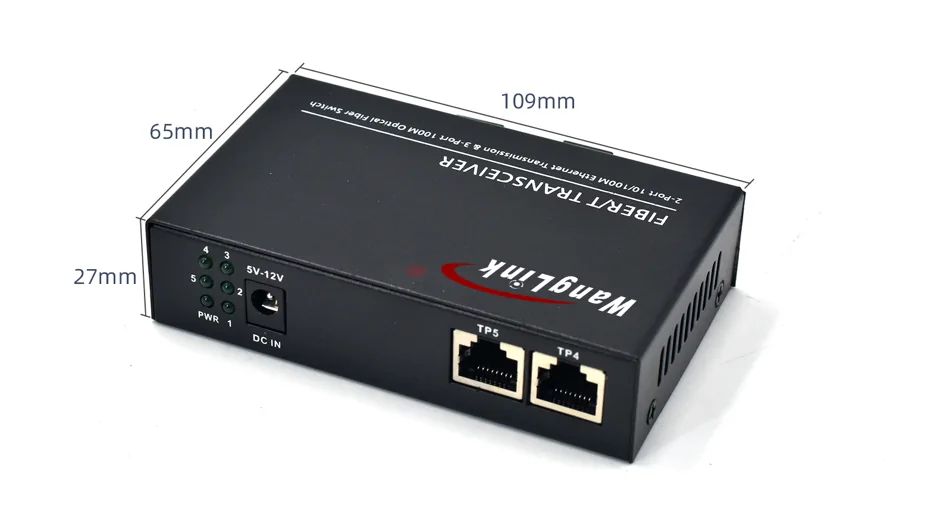

| Appearance dimensions (length*depth*height): 109mm×65mm×27mm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.3KG | |
| Environmental properties | Working temperature: -10℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.0Gbps |
| Packet forwarding rate (whole machine) : 0.745 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Packet buffer : 768Kbit | |
| Jumbo frame: 2048b | |
| Power supply | Input voltage: DC 5V-12V |
| Power consumption: < 3 W | |
| indicator light | Ethernet port 100M: green(port4-5) |
| FX1-FX2:100M: green(port1-3). | |
| Power supply: Green |
