Product Overview
The CF201P PoE Fiber Media Converter is a reliable solution for integrating fiber optic and Ethernet networks, specially designed for efficient power delivery and connectivity. This converter features 1 155Mbps SC fiber port and 2 10/100Mbps Ethernet ports that support IEEE 802.3 af/at Power over Ethernet (PoE) standards, providing up to 25.4W of power per port. The device intelligently detects connected powered devices and delivers power only to those that comply, ensuring protection against potential damage to non-PoE devices.
Key Features
- Two 10/100Base-TX Ethernet ports and one 100Base-X SC fiber optic port for flexible networking options.
- Fully compliant with IEEE 802.3 af/at PoE standards, supplying a maximum output power of 25.4W for each RJ45 port.
- Supports one-click VLAN mode switching to effectively isolate collision and broadcast domains.
- All Ethernet ports are capable of 10/100Mbps speed auto-negotiation for optimal connectivity.
- Ethernet ports support half/full duplex auto-negotiation and automatic MDI/MDI-X crossover for straightforward deployment.
- All ports enable wire-speed forwarding, facilitating smoother data transmission.
- Built with a low-power consumption chip for reliable performance and easy maintenance.
- Plug-and-play design allows for quick installation with no configuration necessary.
- Constructed with a durable metal housing for excellent heat dissipation, ensuring stable operation over time.
Ideal Applications

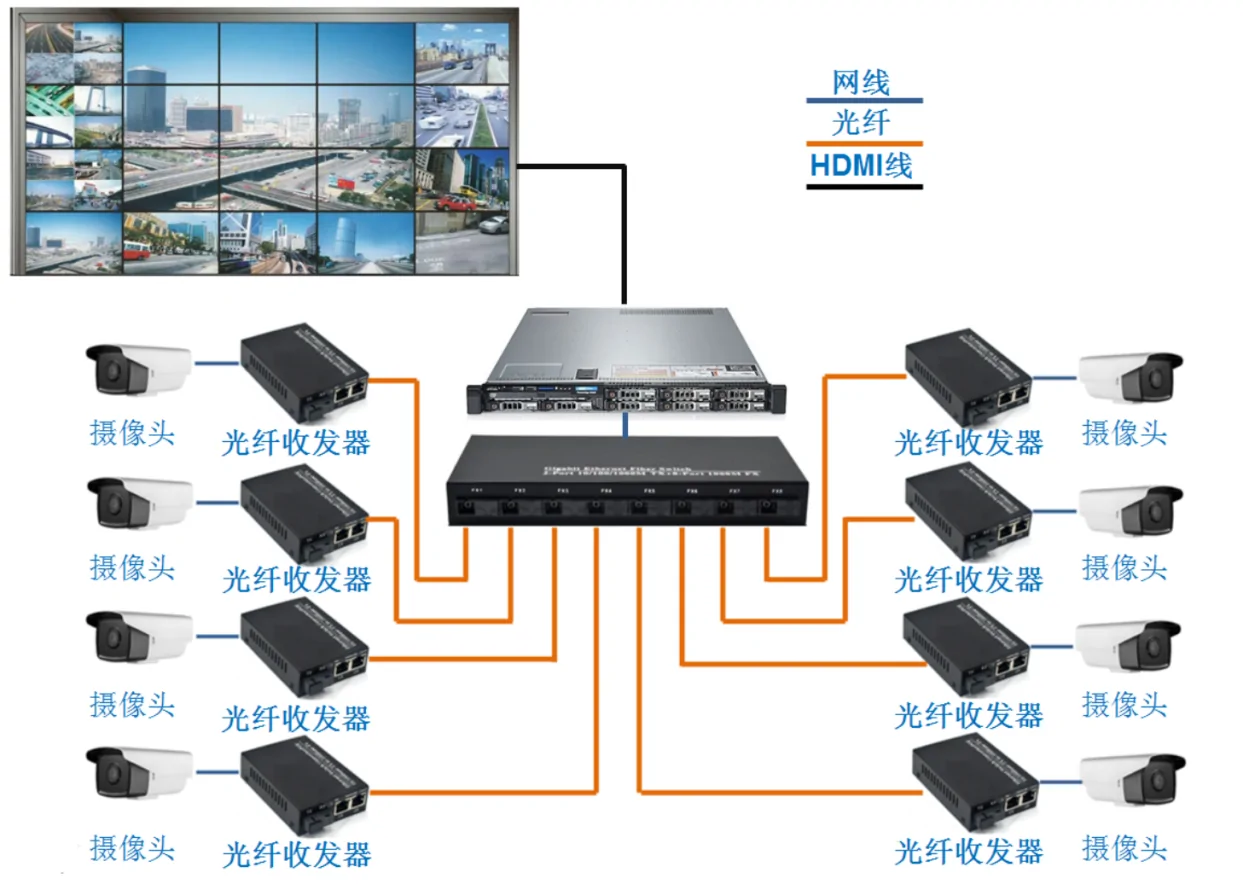

The CF201P PoE Fiber Media Converter is ideal for video surveillance networking and suits various commercial environments, including hotels, retail stores, supermarkets, residential homes, and small to medium-sized businesses.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3z 100Base-SX/LX standards IEEE 802.3af/at Power Over Ethernet IEEE 802.1p tagged frames IEEE802.3x Flow control, |
| Interface information | Single mode SC optical port: 1 100Base-X optical ports(SC/FC/SFP optional) |
| Transmission rate: 155m | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 ethernet port: 2 10/100M Base-T ethernet ports (standard RJ45) | |
| 10/100Mbps auto-negotiation | |
| 10Base-T: ≤100m (CAT5e or above) | |
| 100Base-TX: ≤100m (CAT5e or above) | |
| Mechanical Properties | Shell material: metal shell |

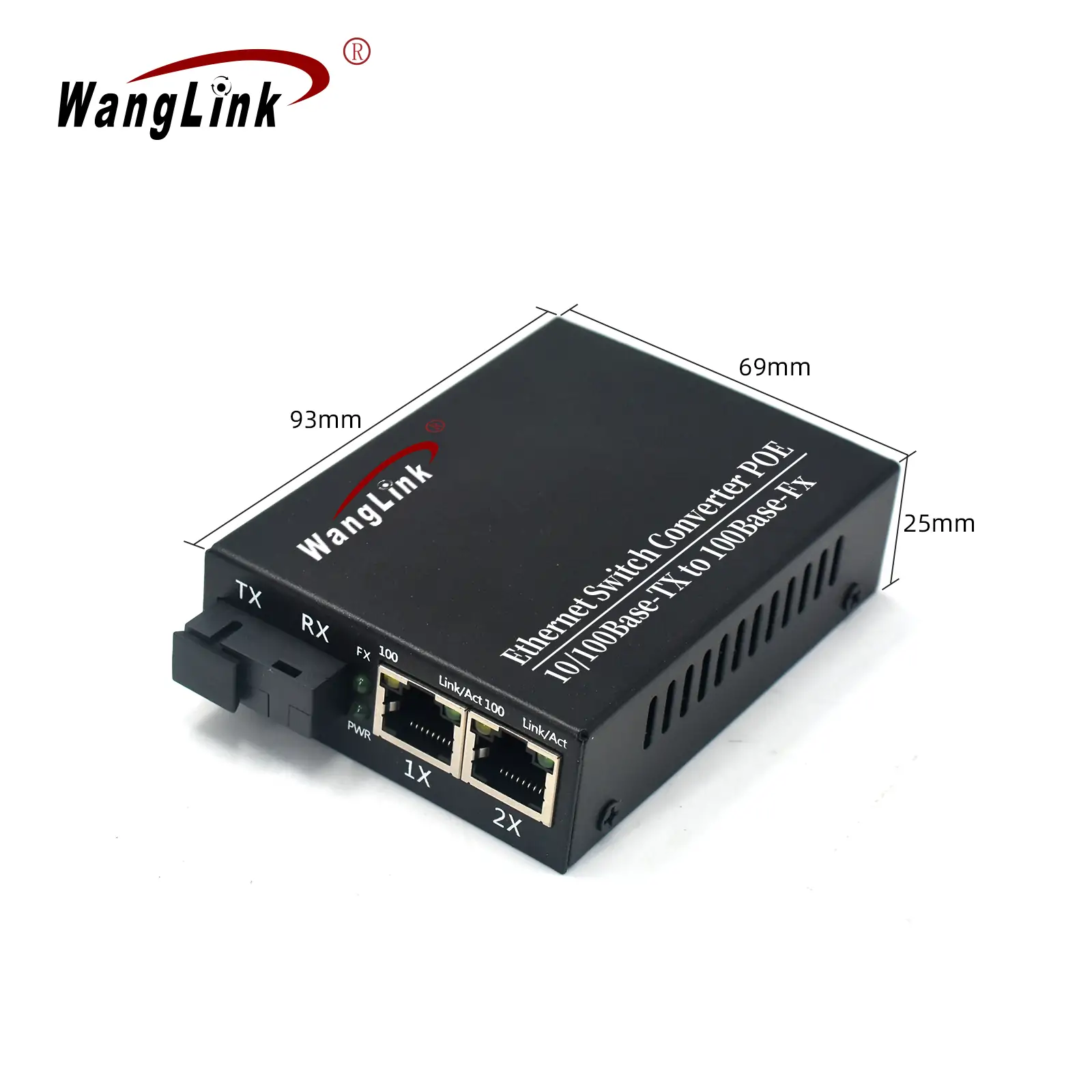

| Appearance size (length * depth * height): 93mm×69mm×25mm | |
| Installation method: Desktop, Rack-mount | |
| Cooling method: natural cooling, no fan | |
| Weight: < 0.18Kg | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+75℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 0.4Gbps |
| Packet forwarding rate (entire device): 0.2976 Mpps. | |
| Switching method: Store-and-forward. | |
| MAC address table: 2K entries. | |
| Packet buffer: 768 Kbits. | |
| Jumbo frame: 2K. | |
| Power supply | Input voltage: DC 44V-52V |
| Power consumption: < 3 W | |
| PoE pin | 802.3AF/AT(1/2+，3/6-) |
| Indicators | Ethernet Port LEDs: POE Indicator: YellowLINK/ACT Indicator: Green |
| Optical Port LED:FX Indicator: Green | |

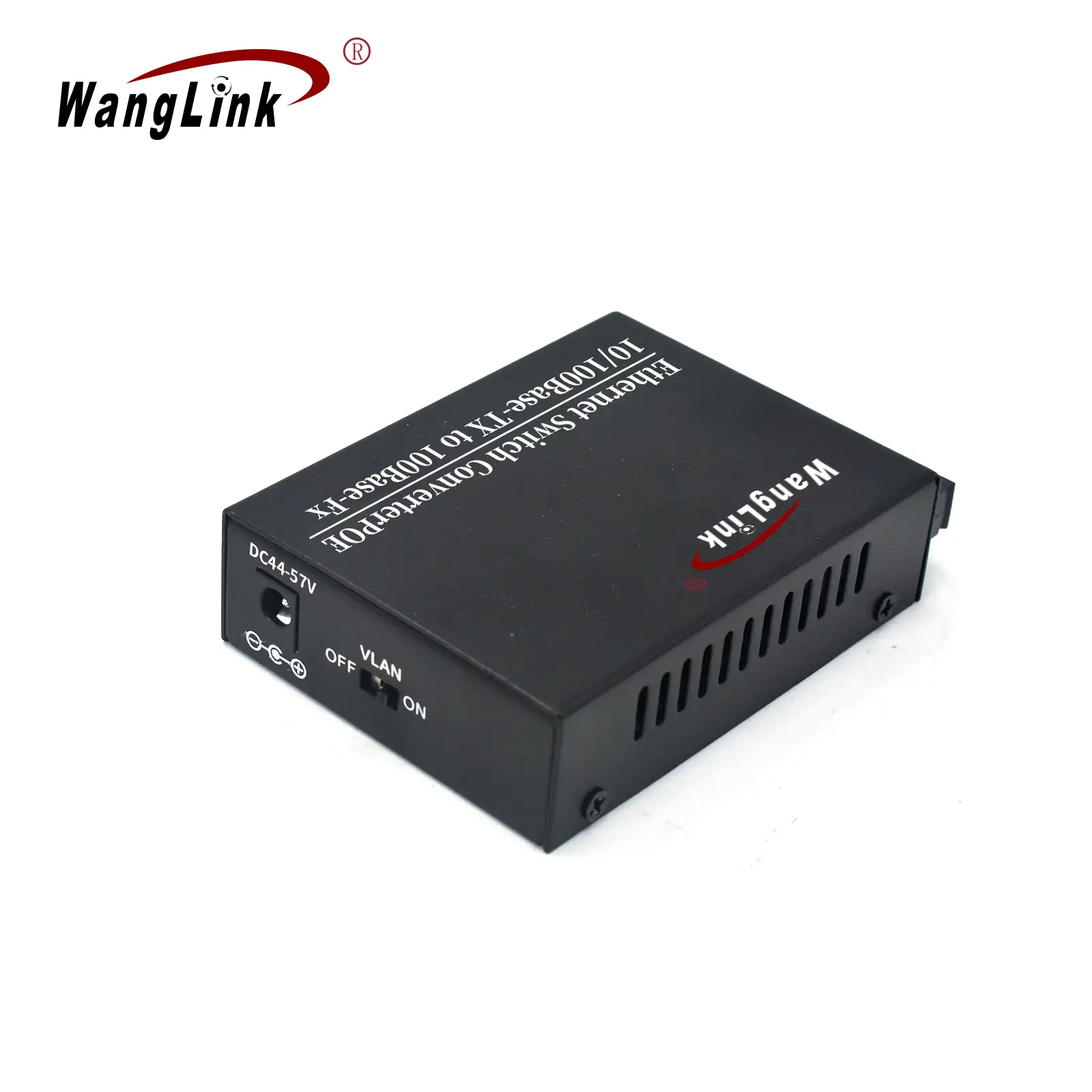

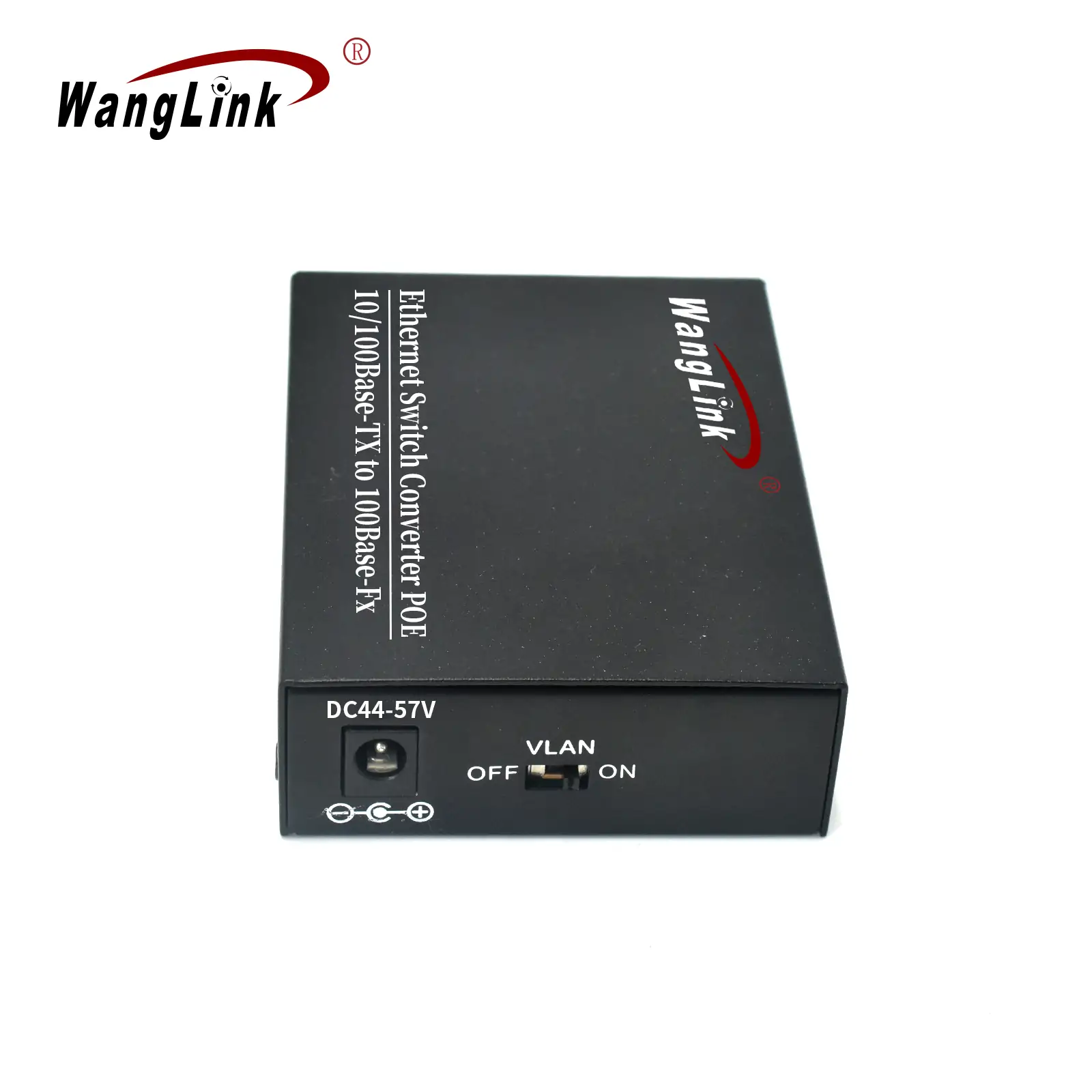

| VLAN SwitchOFF Mode: Normal mode, all ports can communicate with each other.ON Mode: VLAN mode, Ethernet ports 1 and 2 are isolated from each other, but both can communicate with the fiber optic port. | |
| Power LED (PWR): Green |
